Tiertime

Tiertime X5 Continuous 3D Printer

Tiertime X5 Continuous 3D Printer

Regular price $6,985.95 AUD
Regular price Sale price $6,985.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

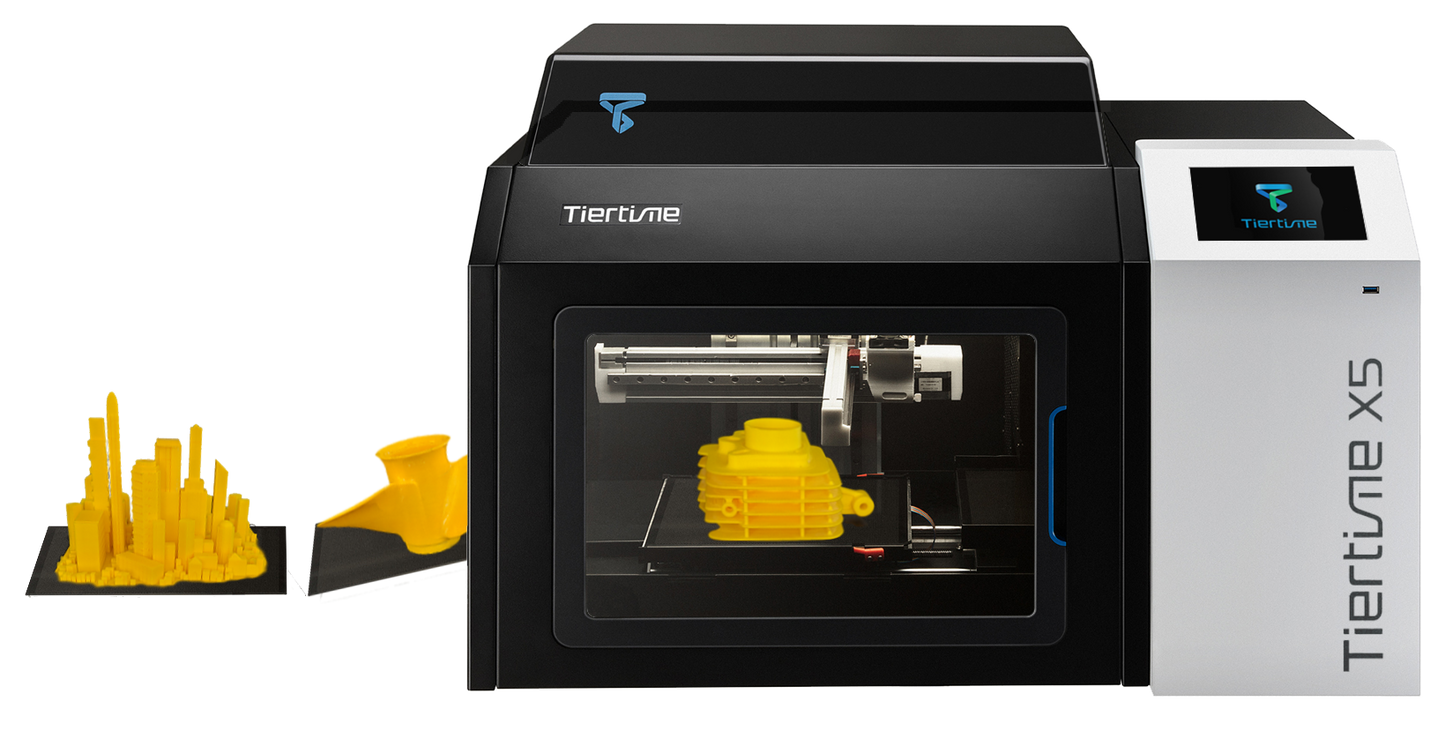

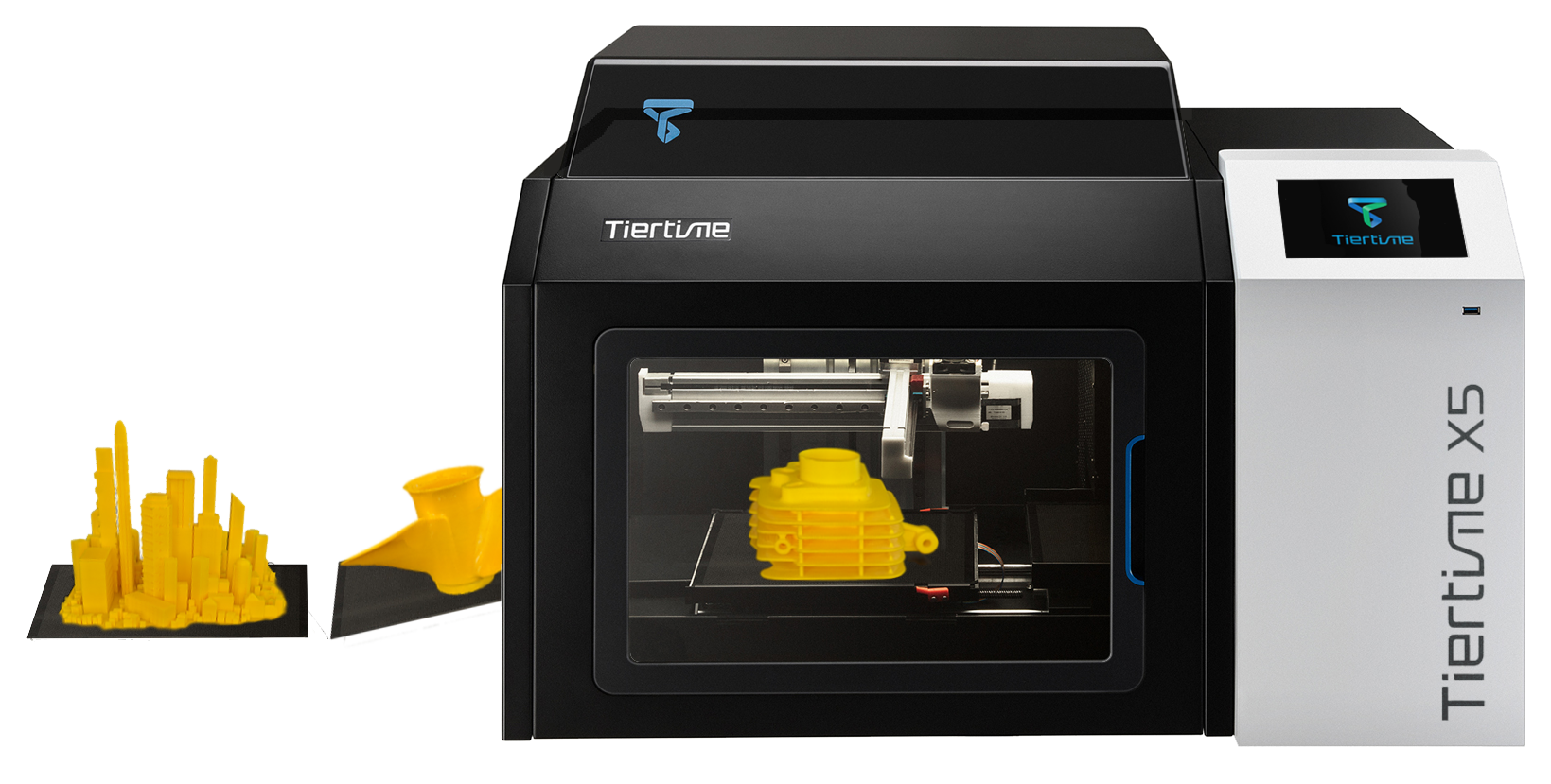

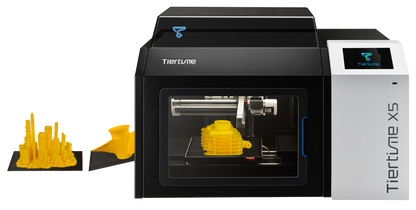

Introducing The New X5

The new X5 is an automated 3D manufacturing printer, turn your workspace into a production line for continuous printing.
Specifically designed for businesses and schools that require to print hundreds of parts a week. Users on the network can spool their jobs to the integrated print queue.

Material Specific Print Heads

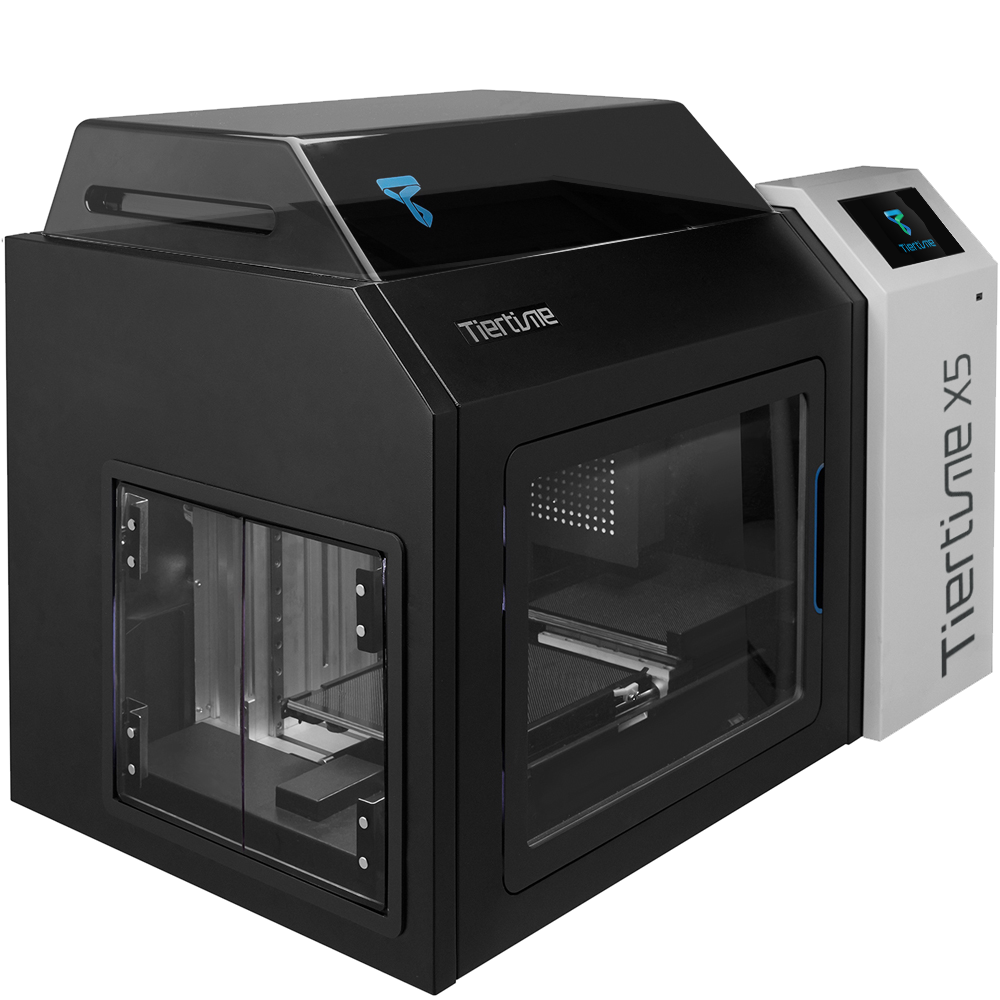

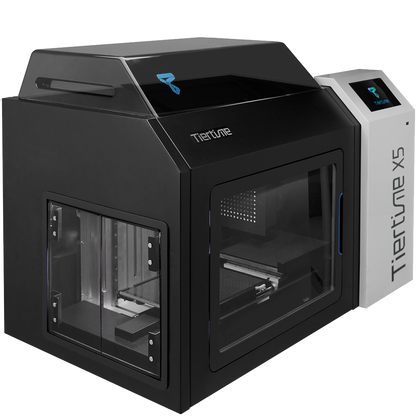

Churn out print after print after print after print after print after print…Stack up and queue up to 12 build plates. Smart self-reloading build plates mean minimal human interaction is required for a hands-free, continuous 3D printing experience. All the
user needs to do is to clean off the completed print platforms and then load the clean plate back into the printer.


The X5 supports up to 2kg spools and can automatically pause and be resumed if it runs out of filament or there is a power
cut.

Dual Filtration Systems

Both PLA and ABS are “high emitters“ of UFP and VOC and it is essential for Health & Saftey compliance that you have a safe environment to
print in. Like the UP BOX+, with its first-in-class air filtration system, the x5 advocates safer 3D printing. With an improved Dual Filtration
System, using both HEPA and Activated Carbon filters, it greatly reduces UFP and VOC density inside the printer.

Total Control

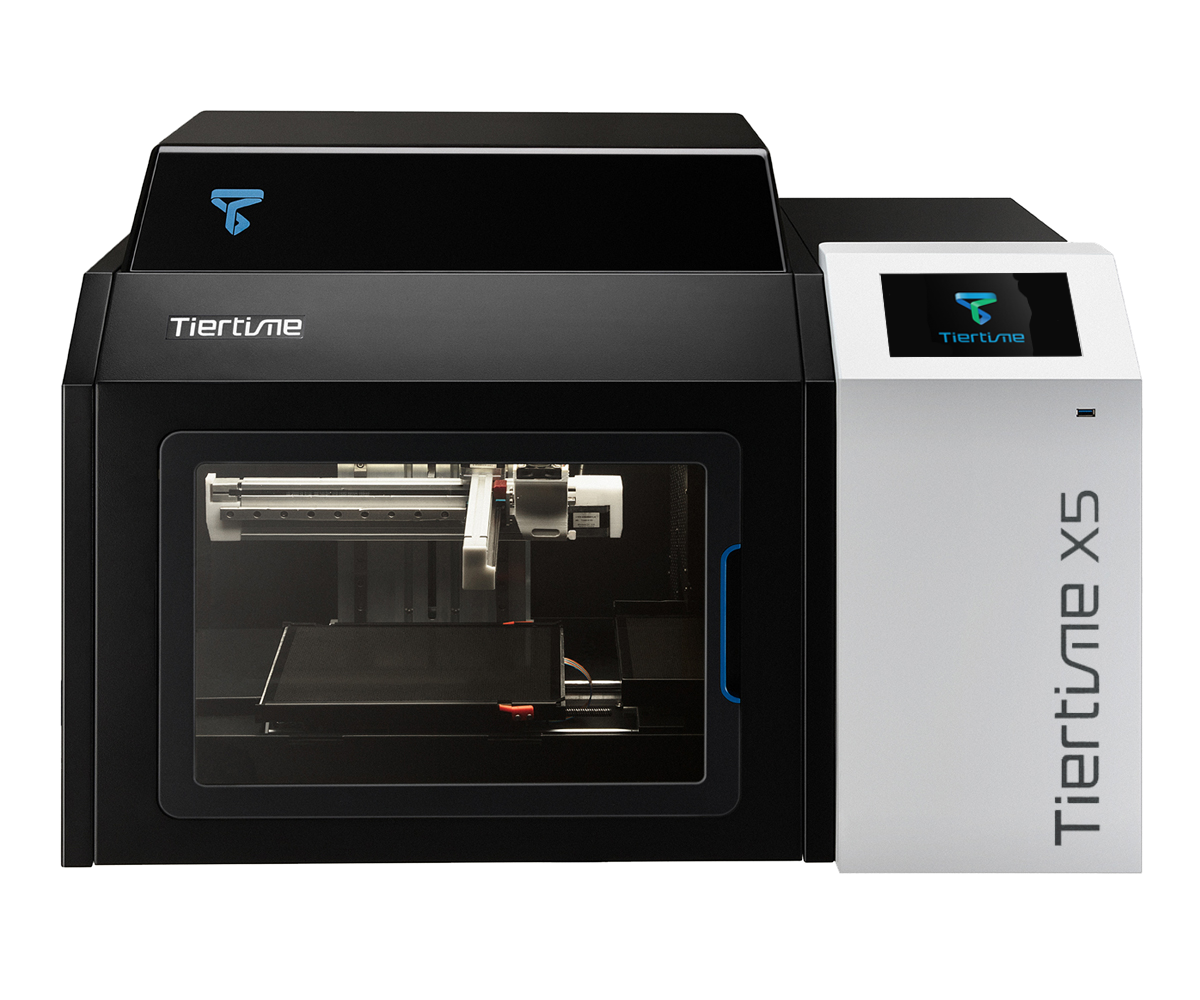

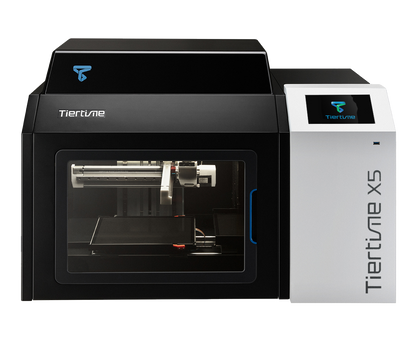

Checking print job status has never been easier. The X5’s large 7” LCD touch screen reports print queue progress and the printer’s transparent
top makes visual build confirmation effortless.

Three USB Ports

One USB port is for loading print jobs stored on a USB memory stick. Another USB port is for computer connectivity andstill another USB port is
for optional add-ons, such as a USB camera for remote print monitoring.

Specifications

Printing Technology FDM (Fused Deposition Modelling)
Extruder Single PLA included. PLA is the recommended material for reliability.  ABS & TPU sold separately

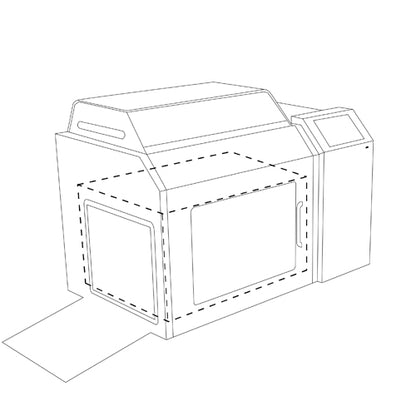

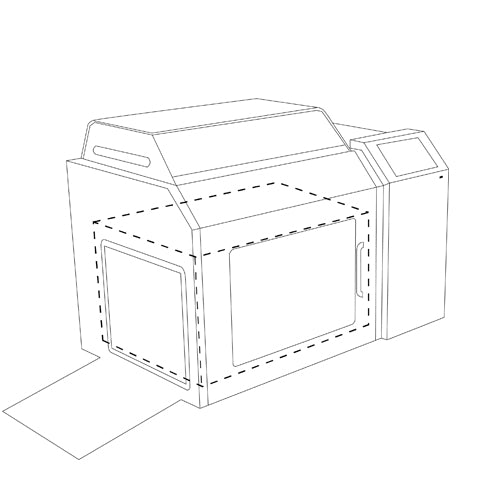

Build Volume 180 × 230 × 200 mm (X,Y,Z)
Nozzle Diameter  0.2mm, 0.4mm, 0.6mm
Layer resolution 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4
Extruder Maximum temperature 299℃
Extruder Maximum travel speed 200 mm/sec
XYZ accuracy XYZ 2, 2, 0.5 micron
Connectivity  USB cable, Wi-Fi, LAN and USB Stick
Touch Screen 7″ colour touch LCD screen

Printed object accuracy ±0.1mm/100mm

Build plate maximum temperature 100℃
Calibration and Levelling Manual Calibration and Levelling
Print Surface UP Perfboard, Heated
Enclosure Full
Dual Filtration System HEPA and active carbon filters
Print Resume on Power Interrupt Yes
Pause to change the type of filament Yes
Out of filament detection Yes
Filament Compatibility UP Fila ABS+, PLA, TPU + third party materials (Recommended PLA or BASF Pro PLA)
Filament Diameter 1.75mm
Filament Spool Compatibility 500g – 2000g
Internal Spool Holder Compatibility 500g – 1000g
Auto-Swapping Build Plate Yes
Print queue Yes

Compatible with 3rd Party Materials Yes

Machine dimensions 850 x 625 x 520 mm
Power requirements 110-240VAC,50-60Hz,90W
Extra USB Input for add-on
