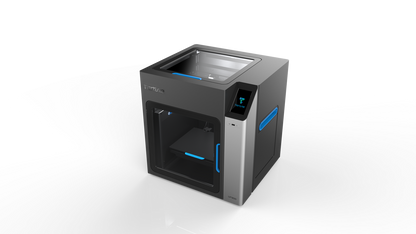

Tiertime UP300 3D Printer

Tiertime UP300 3D Printer

Regular price $3,595.95 AUD
Regular price Sale price $3,595.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Versatility with Precision

Features:

1. Three Specialist Extruders Optimized for Different Materials
2. Interchangeable, double-sided build
3. Dual Air filtration System
4. Compatiblity with Tiertime Print Queue.

Description Summary

New for 2018, the UP300 is targeted for users demanding a large build volume and
consistent performance across varied materials. It combines new innovations and
improved, popular UP features with Tiertime's renowned affordability.

Features and description:

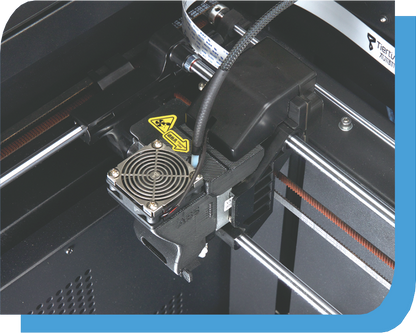

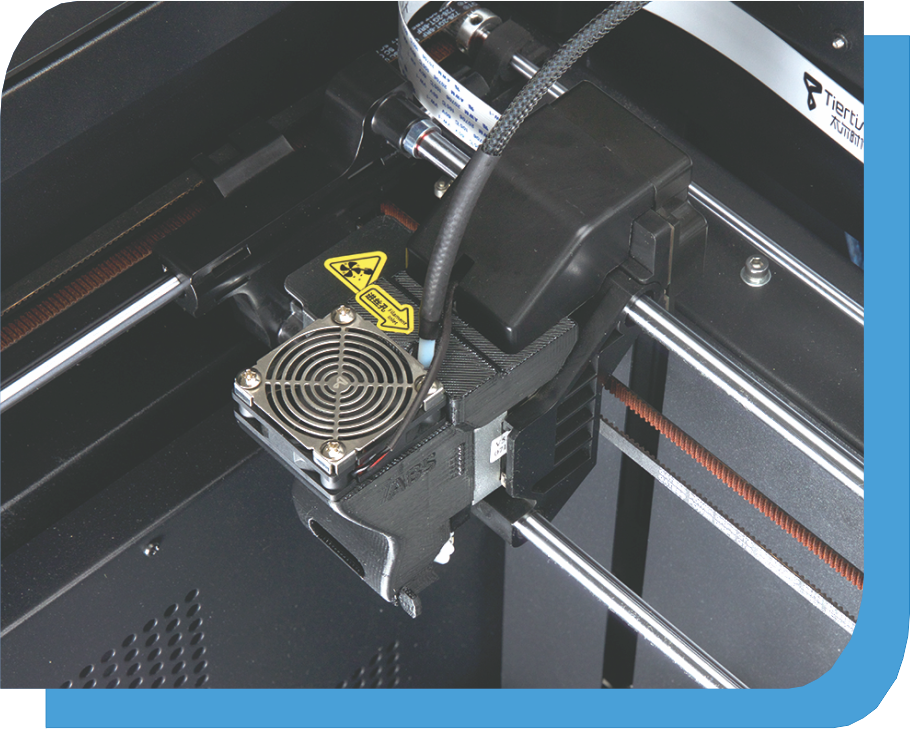

1. Three Separate Extruders - Optimized for Different Materials
Each extruder is designed specifically for a matching material type. One is for ABS
and other high-temperature filaments, one for lower temperature filaments such as
PLA, and the other is for TPU, a flexible polyurethane.

2. Dual Filtration System
Both PLA and ABS are “high emitters“ of UFP and VOC and it is essential for Health
& Saftey compliance that you have a safe enviorment to print in. Manufacturing with
plastic doesn’t have to be unhealthy. The X5 includes Tiertime’s 2018 air filtration
system, specifically designed for large build chambers. Air is recirculated through
separate HEPA and activated carbon filters, radically reducing toxic UFP and VOC
emissions.

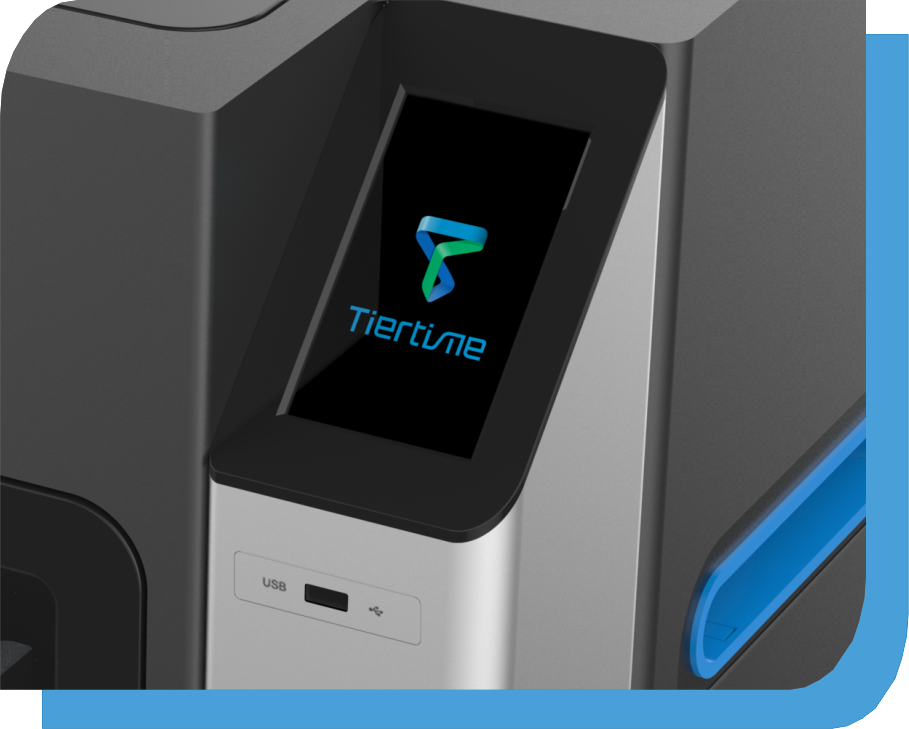

3. Control and Monitor Print Jobs with a 4.3” LCD Screen
A 4.3-inch, full color, LCD touchscreen puts Tiertime Print Queue, print job settings
and print job status right at your fingertips. Software-updateable, it can be enhanced
for future features.

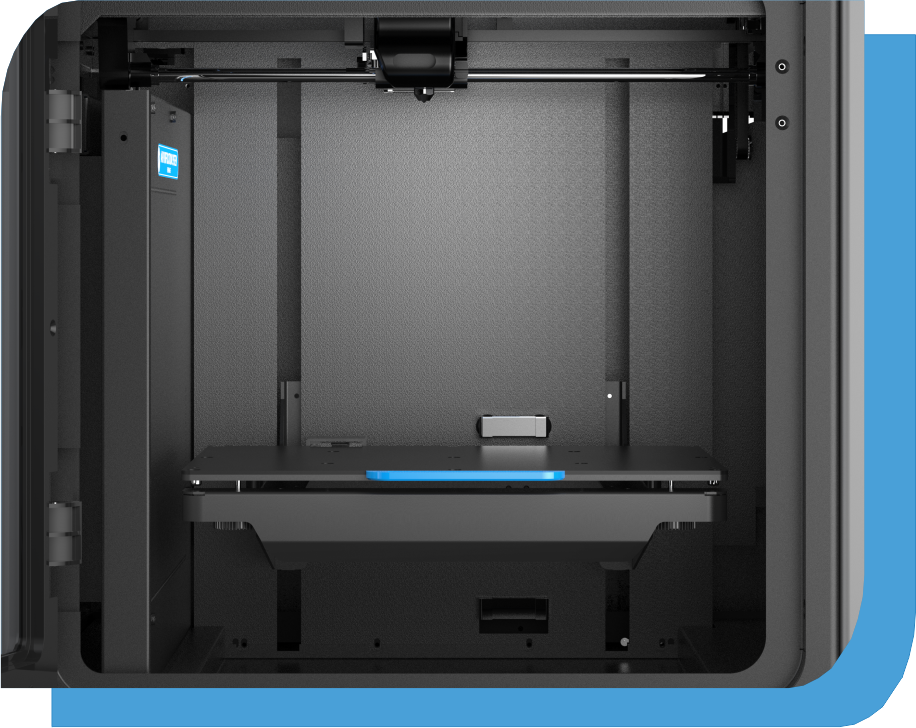

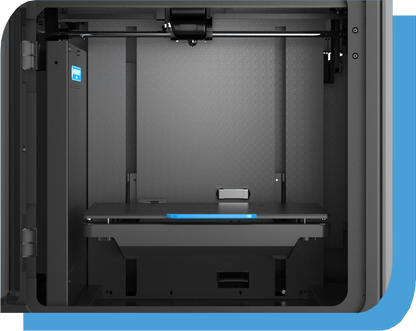

4. Waste Collection Tray
A removable waste collection tray is positioned below the build platform to make
cleaning the bottom of the printer’s enclosure a breeze.

5. Tiertime Print Queue
Tiertime’s new Print Queue allows multiple users to stack print jobs into a queue,
accessible from the printer’s touchscreen and from Tiertime’s software. Any user on
the network can become the queue’s administrator, controlling and re-ordering the
print queue.

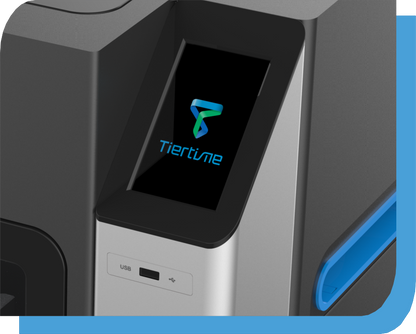

6. Print Directly from USB Stick
The 2018 Tiertime line of 3D printers includes a spare USB port for loading print
tasks from a USB memory stick. A print task is a sliced 3D model file with print
settings embedded.

7. Ethernet Connection
In addition to Wi-Fi, the UP300 includes a LAN Port for those preferring to work in a
more secure, hard-wired network environment.

Printing Technology MEM (Melted Extrusion Modelling)
Extruder Single

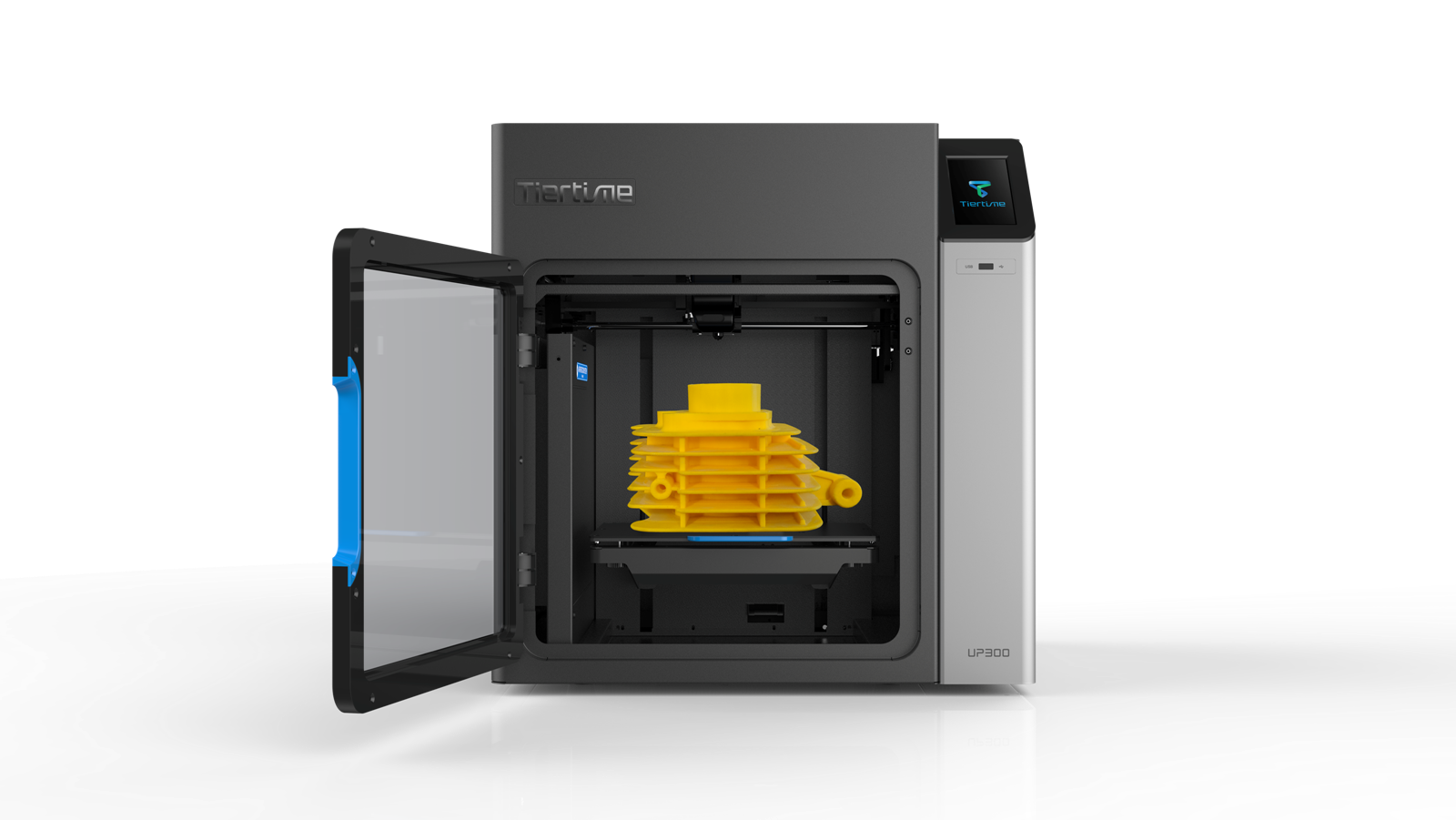

Build Volume 205 × 255 × 225mm (XYZ)
Nozzle Diameter 0.2mm, 0.4mm, 0.6mm
Layer resolution 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4
Extruder Maximum temperature 299℃
Extruder Maximum travel speed 200 mm/sec
XYZ accuracy XYZ 2, 2, 0.5 micron

Connectivity USB cable, Wi-Fi, LAN and USB Stick
Touch Screen 4.3″ LCD
Printed object accuracy ±0.1mm/100mm
Build plate maximum temperature 100℃
Calibration and Leveling Automatic Nozzle Height and Automatic Leveling
Print Surface Perf Glass or Flex Glass, Heated

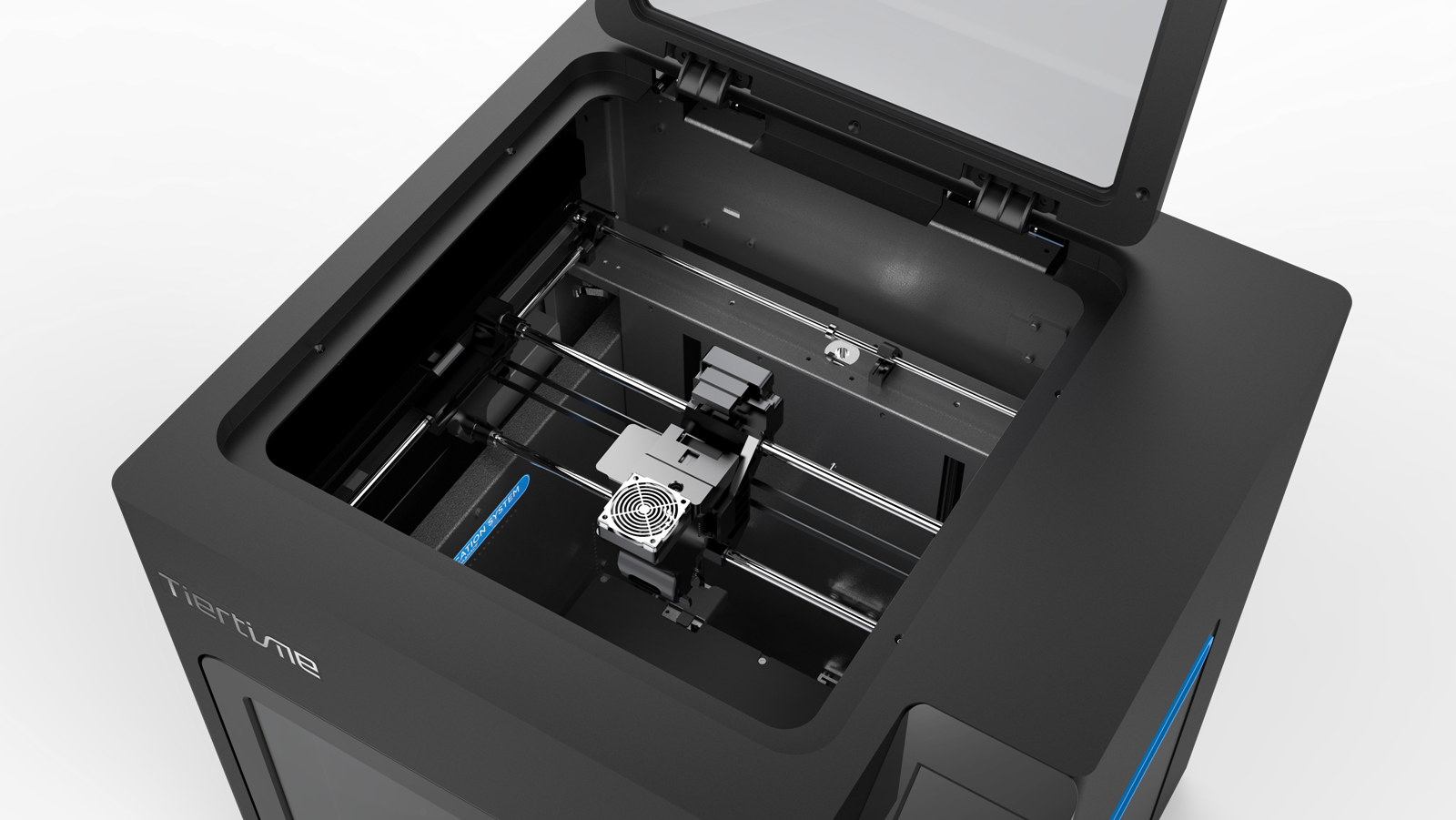

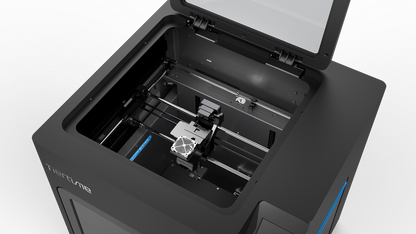

Enclosure Full
Dual Filtration System HEPA and active carbon filters
Print Resume on Power Interrupt Yes
Pause to change the type of
filament Yes
Out of filament detection Yes
Filament Compatibility UP Fila ABS, ABS+, PLA , TPU, and more
Filament Diameter 1.75mm
Filament Spool Compatibility 500g - 1000g
Print queue Yes
Compatible with 3rd Materials Yes
Physical dimensions

Machine dimensions 500x523x460 mm (19.6″ x 20.5″ x 18.1″)
Net weight 30KG
Power requirements

Input 110-240VAC,50-60Hz,90W
Extra USB Input for add-on 5V, 1A

Software

Software UP Studio
Supported OS Windows 7/8/10, Mac OS X, iOS 8.x/9.x
Importable file formats up3, .ups, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode
Preview support structures Yes
Editable support structures Yes
Cloud print settings Yes

Ambient Environment

Operating ambient temperatures 15 - 30℃,20 - 70%
