Shining3D FreeScan Trak Pro2 3D Scanner

Shining3D FreeScan Trak Pro2 3D Scanner

Regular price $101,640.95 AUD
Regular price Sale price $101,640.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Optical 3D Measuring and Dynamic Tracking without Markers

  • Dynamic referencing, no markers needed
  • Accuracy up to 0.023 mm
  • High-speed scanning speed up to 3,070,000 points/sec
  • ISO 17025 accredited
  • 3D scanning modes for versatility
  • Intuitive software with a comprehensive toolkit

Dynamic Referencing, No Markers Needed

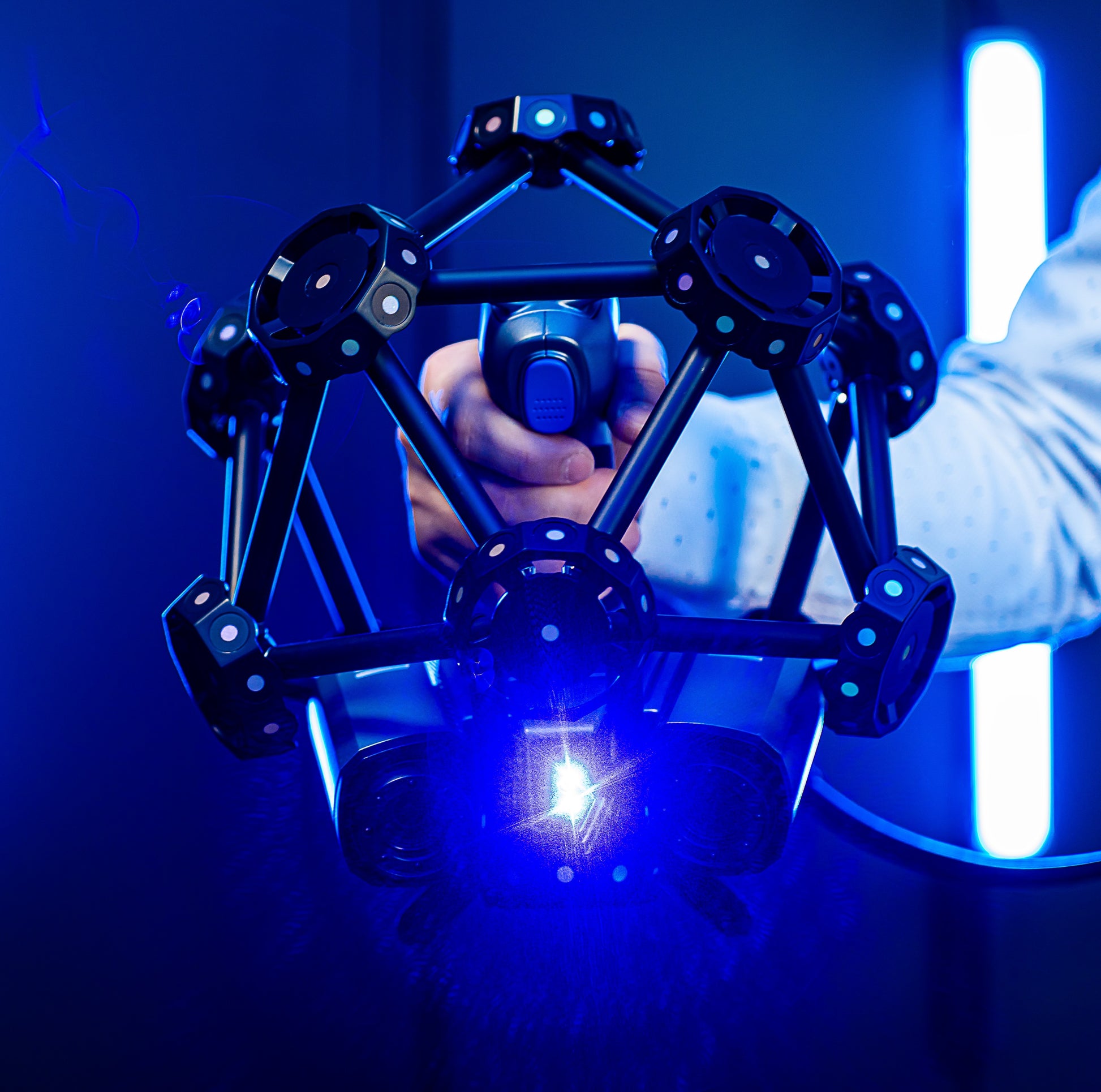

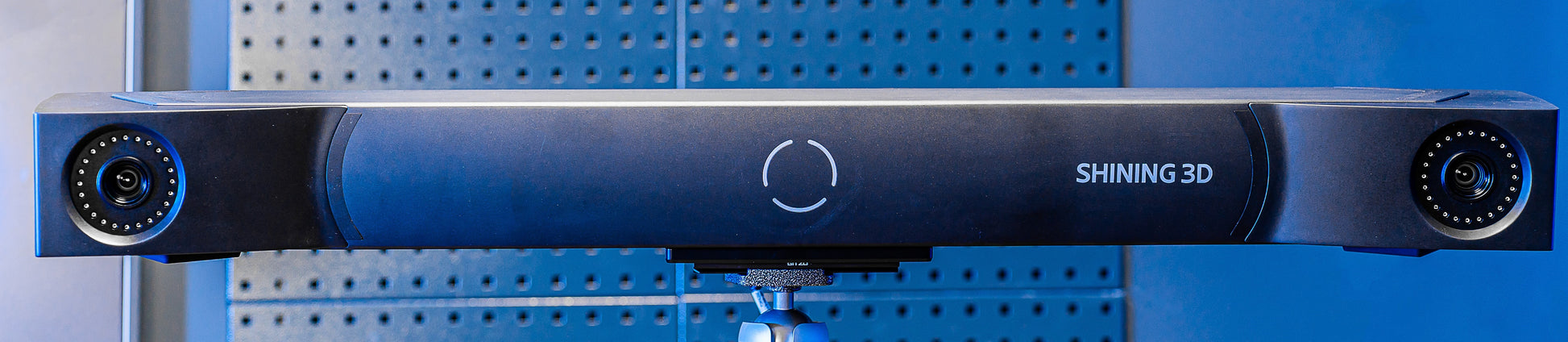

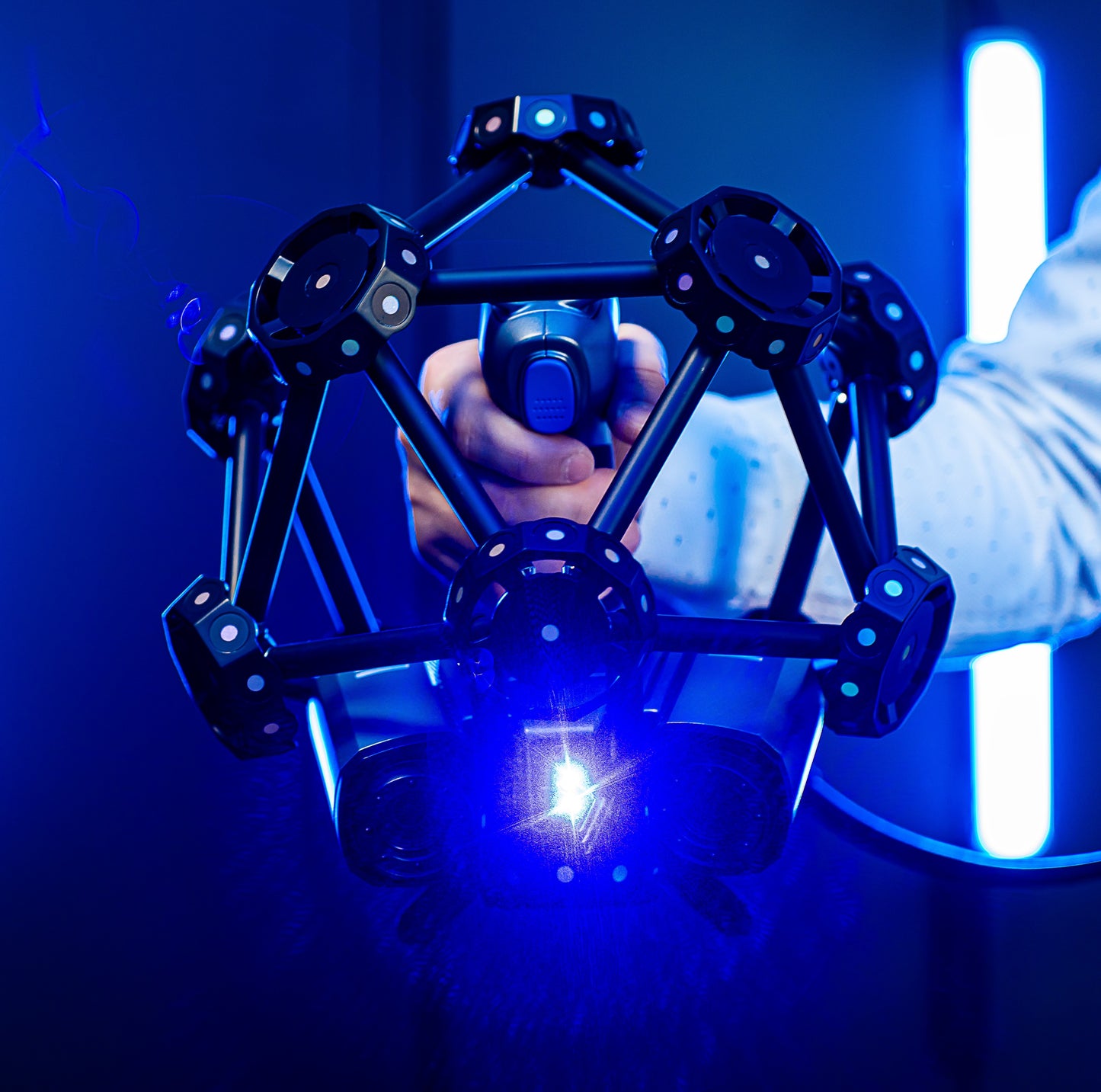

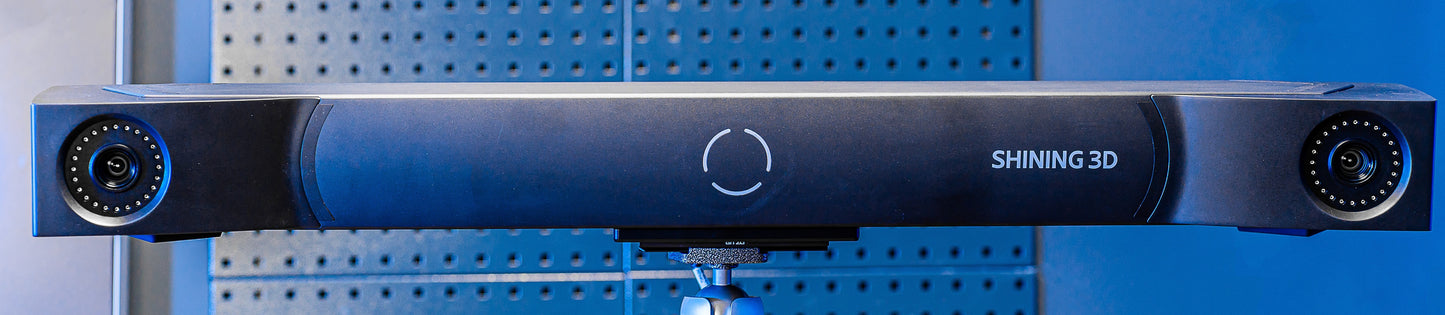

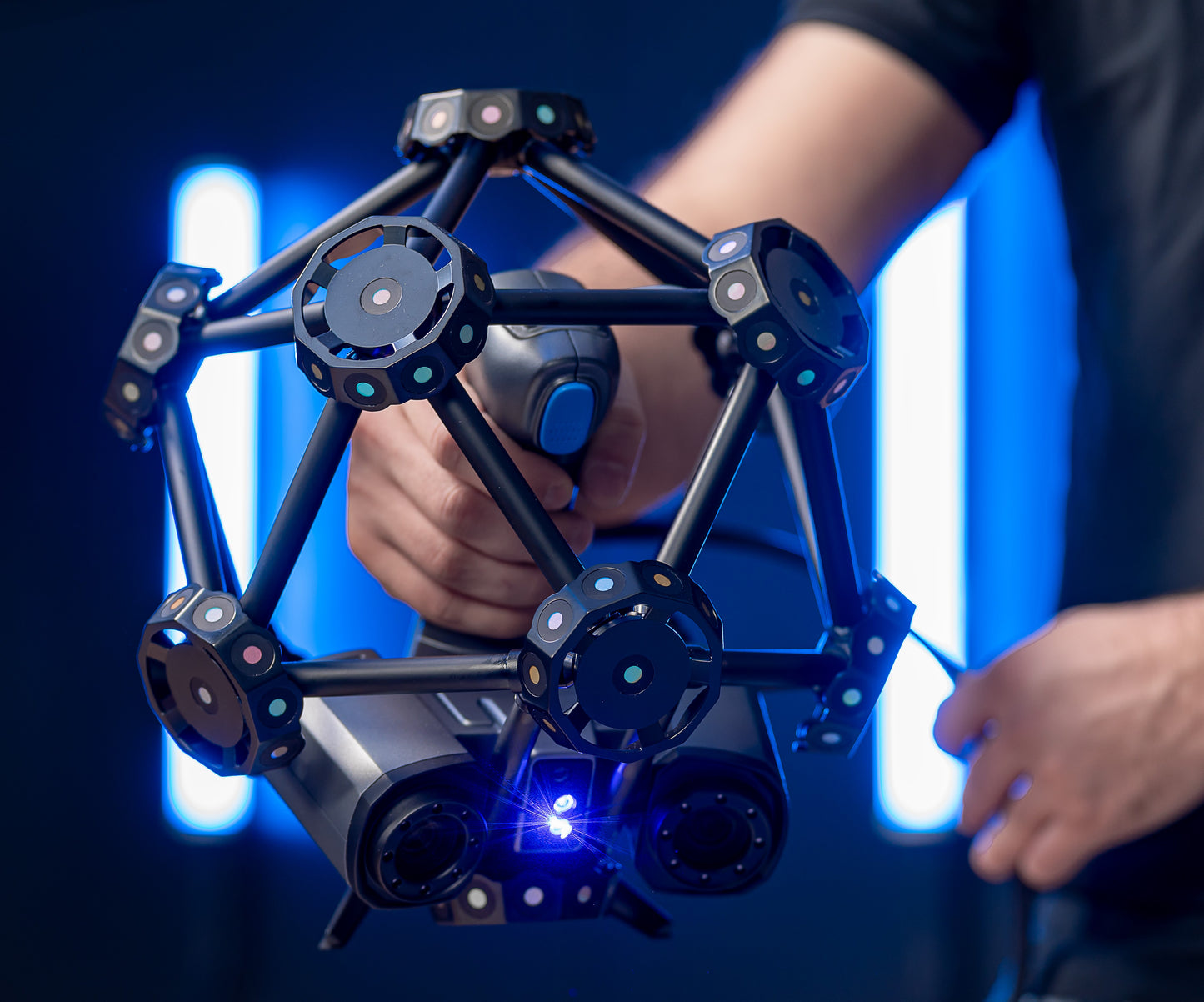

The FreeTrak bar dynamically tracks the TE25 scanner thanks to its tracking targets, without the need to manually place markers on the scanned object. This markerless operation saves time and makes the 3D scanning process much smoother.

Features

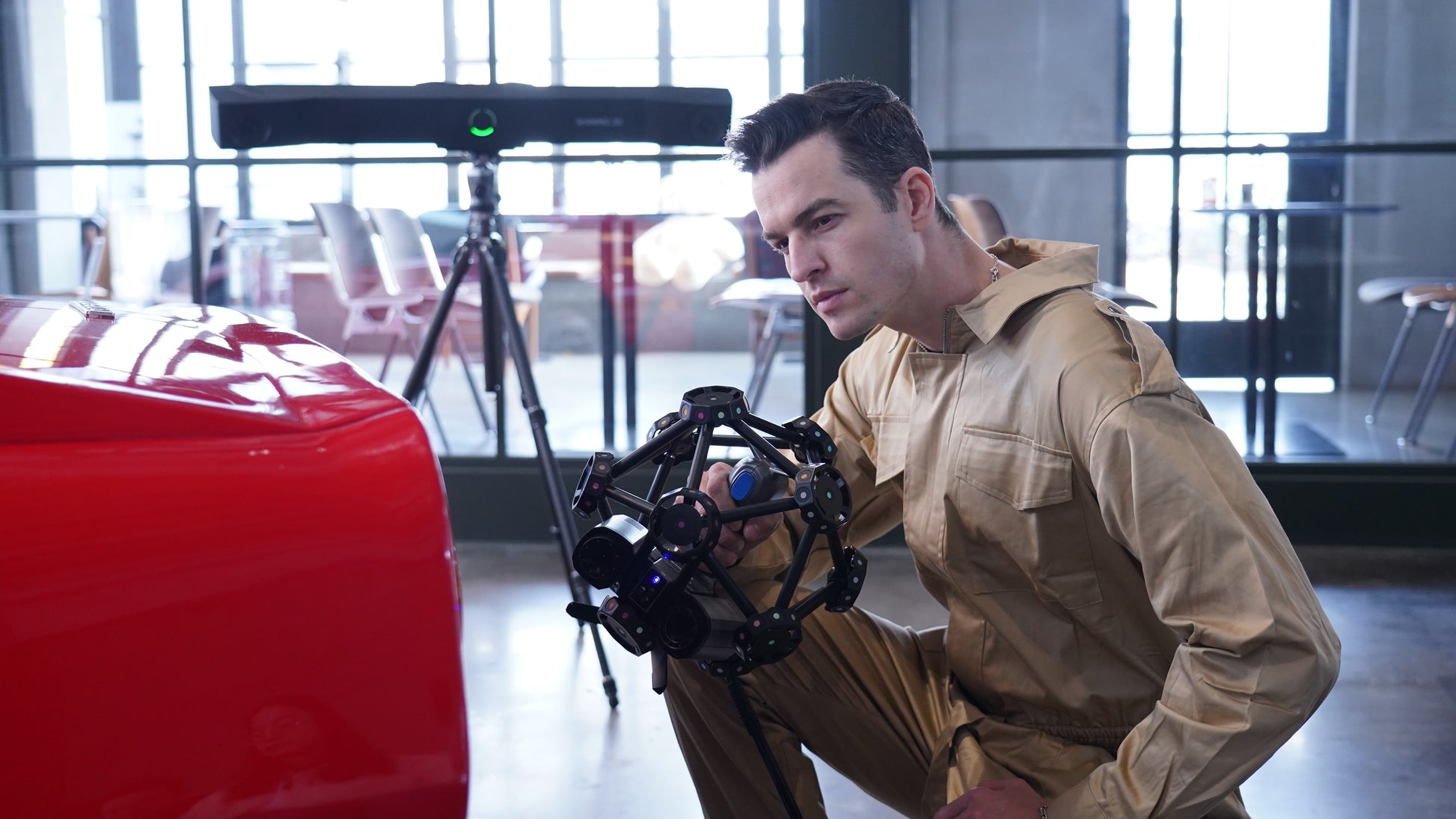

The FreeScan Trak Pro2 Portable Optical Coordinate Measuring System is the ideal metrology tool for quality control and 3D inspection. With high precision and repeatability, the FreeScan Trak Pro2 allows for fast, accurate inspection of various part types and surfaces without the need for markers.


When paired with the optional FreeProbe, users can seamlessly integrate contact probing to the optical scanning process for a swifter and more convenient overall inspection workflow.

50 crossed laser lines: Quick and highly accurate scan
7 parallel laser lines: Partial HD scan for extremely fine details
1 single laser line: Deep hole scanning (hole diameter:depth ratio of 1:4)

Supports both optical tracking and marker scanning

Robust & Intuitive Software

Real-time Display of Mesh Data

Our intuitive, streamlined software displays mesh data in real time as you scan your workpiece, saving time on point cloud meshing later on.

FreeScan Trak Pro2FreeProbe (optional)
Accuracy0.023 mm (0.0009 in)0.025 mm (0.0009 in)
Volumetric accuracy*9.6 m3: 0.062 mm (339 ft3: 0.0024 in)
17.6 m3: 0.072 mm (622 ft3: 0.0028 in)
Volumetric accuracy*
with photogrammetry
0.044 mm + 0.012 mm/m
(0.0017 + 0.0004 in/ft)

FreeScan Trak Pro2FreeProbe (optional)
Scan speedUp to 3,070,000 points/s100 measurements/s
Max. FOV650 x 580 mm (25.5 x 22.8 in)/
Point distance0.01 ~ 10 mm (0.0003 ~ 0.39 in)/
Scan depth400 mm (15.7 in)/
Recommended object size0.1 ~ 10 m (3.937 ~ 393.7 in)/
WeightFreeTrak: 7.2 kg (15.8 lbs)
TE25: 1.47 kg (3.2 lbs)
0.5 kg (1.1 lbs)
DimensionsFreeTrak: 1079 x 237 x 110 mm (42.4 x 9.3 x 4.3 in)
TE25:281 x 283 x 290 mm (11.1 x 11.1 x 11.4 in)
70 x 150 x 340 mm
(2.7 x 5.9 x 13.3 in)

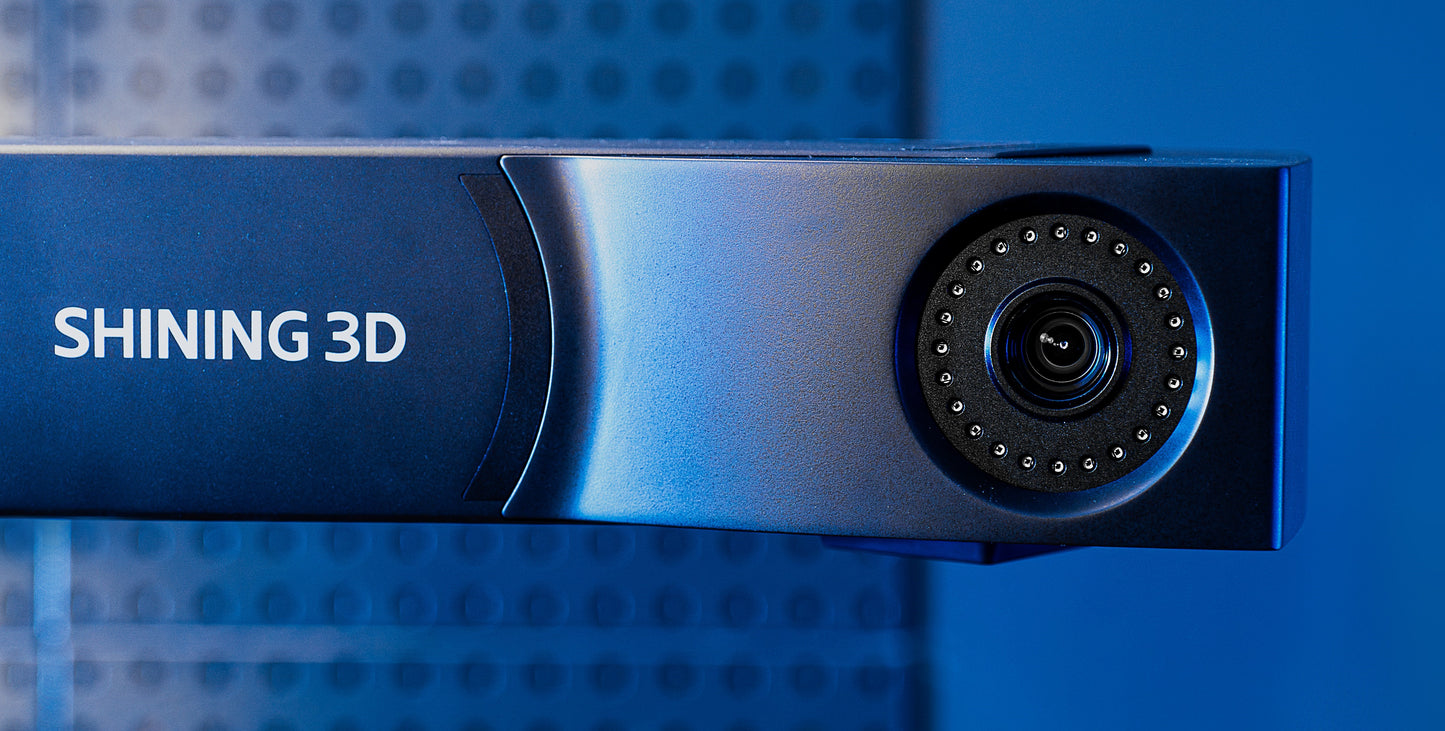

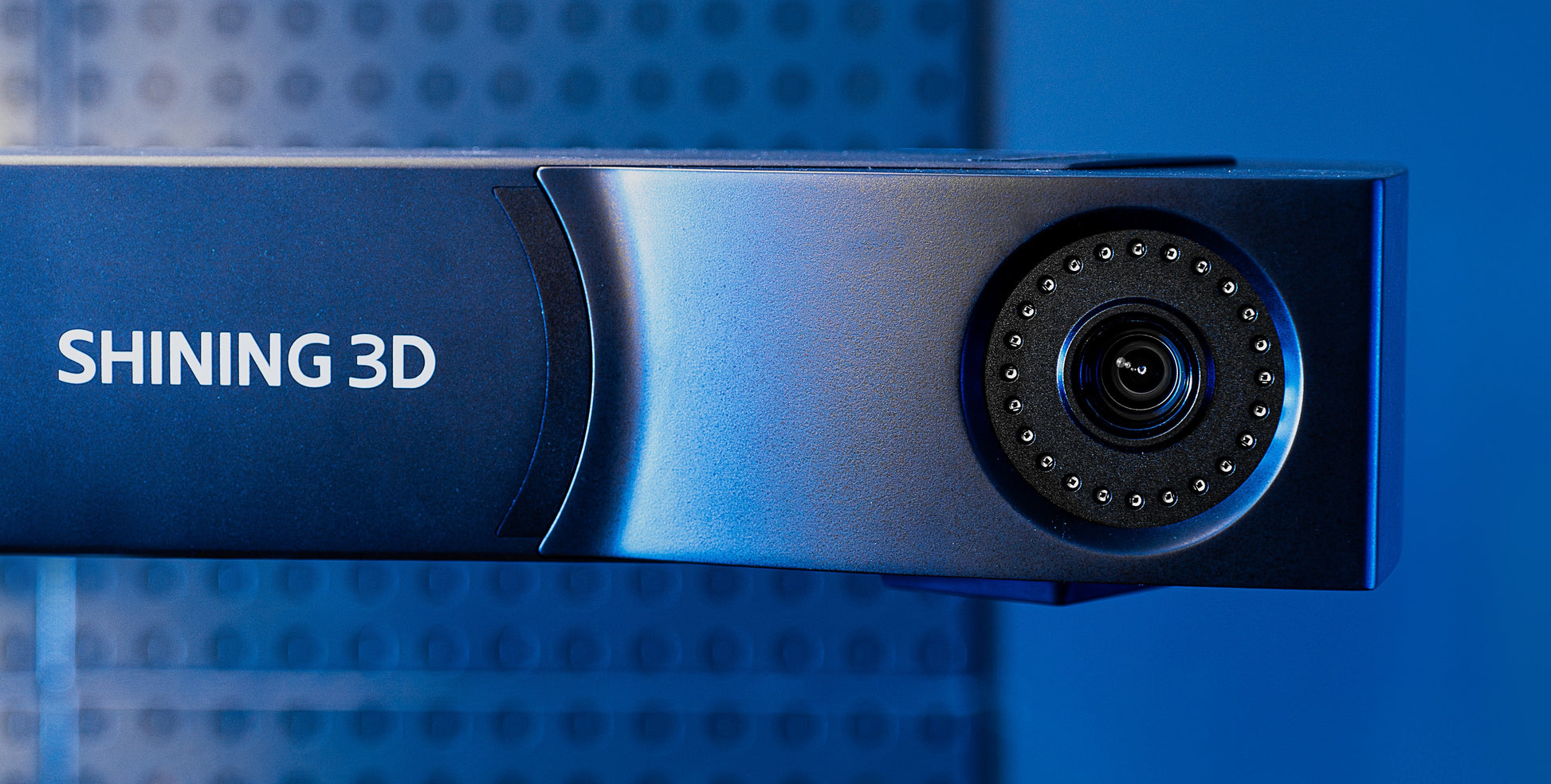

Light sourceFreeTrak: Infrared LED
TE25: 50 cross laser lines, 7 parallel laser lines, 1 single laser line



Recommended computer configurationOS: Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit);
CPU: 13th Gen Intel (R) Core (TM) i7-13650HX 2.6 GHz or above;
Video card: NVIDIA GeForce RTX 4060 or above
Video memory: 8GB or above;
RAM: 64GB or above, DDR5 dual-channel; USB port: USB 3.0
