Modix Griffin Print-head

Modix Griffin Print-head

Regular price $299.95 AUD
Regular price Sale price $299.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Previously and optional upgrade and now is the default print head on all our printers, the new Griffin print-head is a major improvement to our offering. It consists of a custom extruder made by Bondtech (based on the BMG model) and of a new hotend designed by Modix. The new design comes default with every Modix printer and includes the following improvements:

High flow rate & high printing temperatures:  The Bondtech extruder provides a double drive-gear system that grabs the filament from both sides. The heat-block is made of nickel-coated copper, for an increased rate of heat transfer and compatibility with higher printing temperatures. The design includes the advanced Slice Engineering Bi-Metal heat-break that extends the melting zone inside the heat-block by being mostly made of copper as well. In addition, an upgraded PT-1000 temperature sensor enables printing in higher temperatures of up to 500°c. The hotend components are rated for 500°c and so far have been verified with printing of up to 340°c.

Higher reliability:
Large scale 3D printing usually involves the risk of the print-head scratching or crashing into the thick layer models resulting in bent or broken heat-breaks. The new print-head provides a rigid mounting of the heat-block, so it’s naturally more reliable and reduces these situations. The main reason for this is that the heat-block is now mounted on three faces instead of only one. It can withstand a much stronger impact thanks to this additional bracing. The longer-type Griffin High-Flow can also be attached to the rigid mounting as well.

Improved User Experience:
The new print-head design makes nozzle replacements easier. The rigid mounting of the heat-block allows one handed nozzle replacement, making it even easier to change to different nozzle diameters.

Easy Swap:  The design of the mounting bracket and the D shaft style of the Slice Engineering heat-break gives users the ability to replace the entire filament melting subsystem with ease. This will allow users to dedicate a complete setup for a specific filament type. i.e., keeping one setup for abrasive carbon filled filament and another for prototyping with PLA.

Compact Design:  The new design maintains the previous design benefits of compact design that preserves the generous Z-axis travel and is compatible with the vast offering of E3D Volcano nozzles coming in numerous sizes and materials.

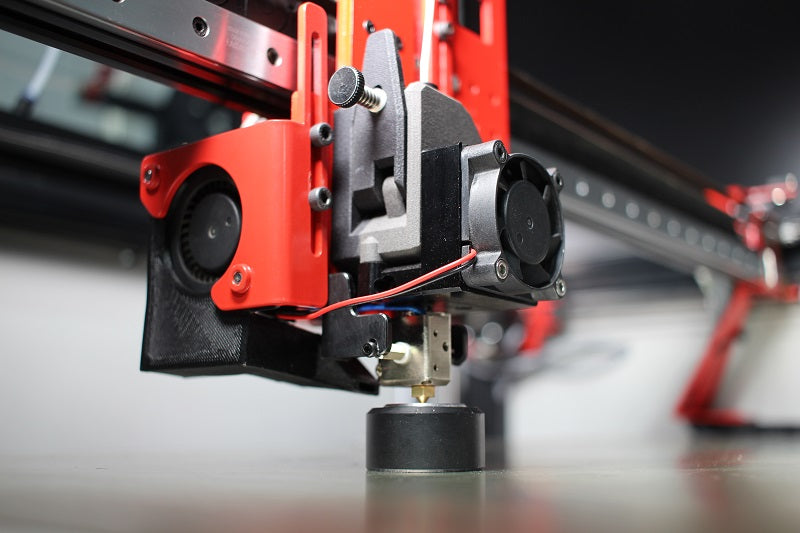

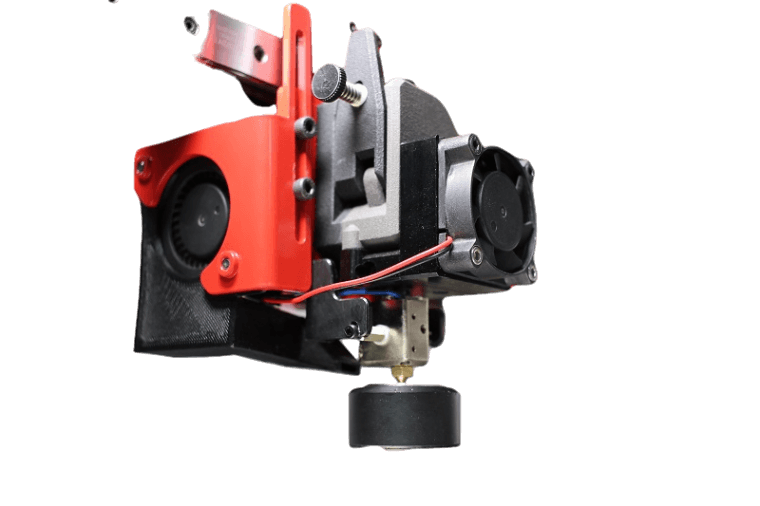

Smart:  The new print-head allows automatic Z off-set calibration between the nozzle and the BL Touch probe. This is easier and more precise than the manual procedure. A dedicated sensor allows the BL-Touch and the nozzle to touch the surface, consequently. The precise relative distance between the probe and the nozzle (“Z-offset”) is saved automatically to the printer.

*The brass nozzle needs to be replaced with a higher-temperature capable nozzle as well for temperatures above 300c
