Modix EVEREST 3D Printer - Price on Application
Modix EVEREST 3D Printer - Price on Application
Couldn't load pickup availability
Share
Print Tall, Print Fast
Introducing Modix Everest, the latest innovation from Modix that stands tall among our 3D printers. The Modix Everest is not just another printer, it enables printing of objects up to two meters tall in a single print. It prints fast with a new print head capable of more than 500 gr per hour and thick layers. Everest is our latest effort to push the boundaries of what’s possible in 3D printing.
Reduced Post-Processing
The Modix BIG-2 Meter “Everest” eliminates the need for assembling parts from multiple smaller prints. By enabling printing of objects up to two meters tall, it drastically reduces the time spent on gluing and assembly, leading to stronger, seamless final products.
Fast Printing with Griffin Ultra
Everest is equipped with the Griffin Ultra hotend capable of printing more than 500gr per hour! This enables the rapid production of insanely tall objects, drastically reducing print times. I.e. the two meter tall bottle took only 17 hours of printing time (8.2 Kg 1.2 mm layer height, 2 perimeters – not a vase mode).
Based on the BIG-Meter
Modix Everest is based on the market leader BIG-Meter sharing gantry, electronic & heaters components. The BIG-2Meter was designed with a reinforced frame made of strong 4,080 mm profiles (double the size of BIG-Meter) and therefore it prints well even without the enclosure. The included enclosure helps maintaining the internal ambient temperature. The bed is attached to the HIWIN rails installed on the Z profiles, stabilizing the entire frame while moving down during the print time.
Included add-ons
Enclosure, Modix Griffin and the new Griffin Ultra print-heads, large spool mounting (internal), Casters, Tilt screen, Z HiWin rails, Clog & Crush detectors & PT100 thermisitor.
Optional add-ons
- Magnetic bed
- IDEX dual print head
- Air filter
- Various print head add-ons and replacement parts.
Safety

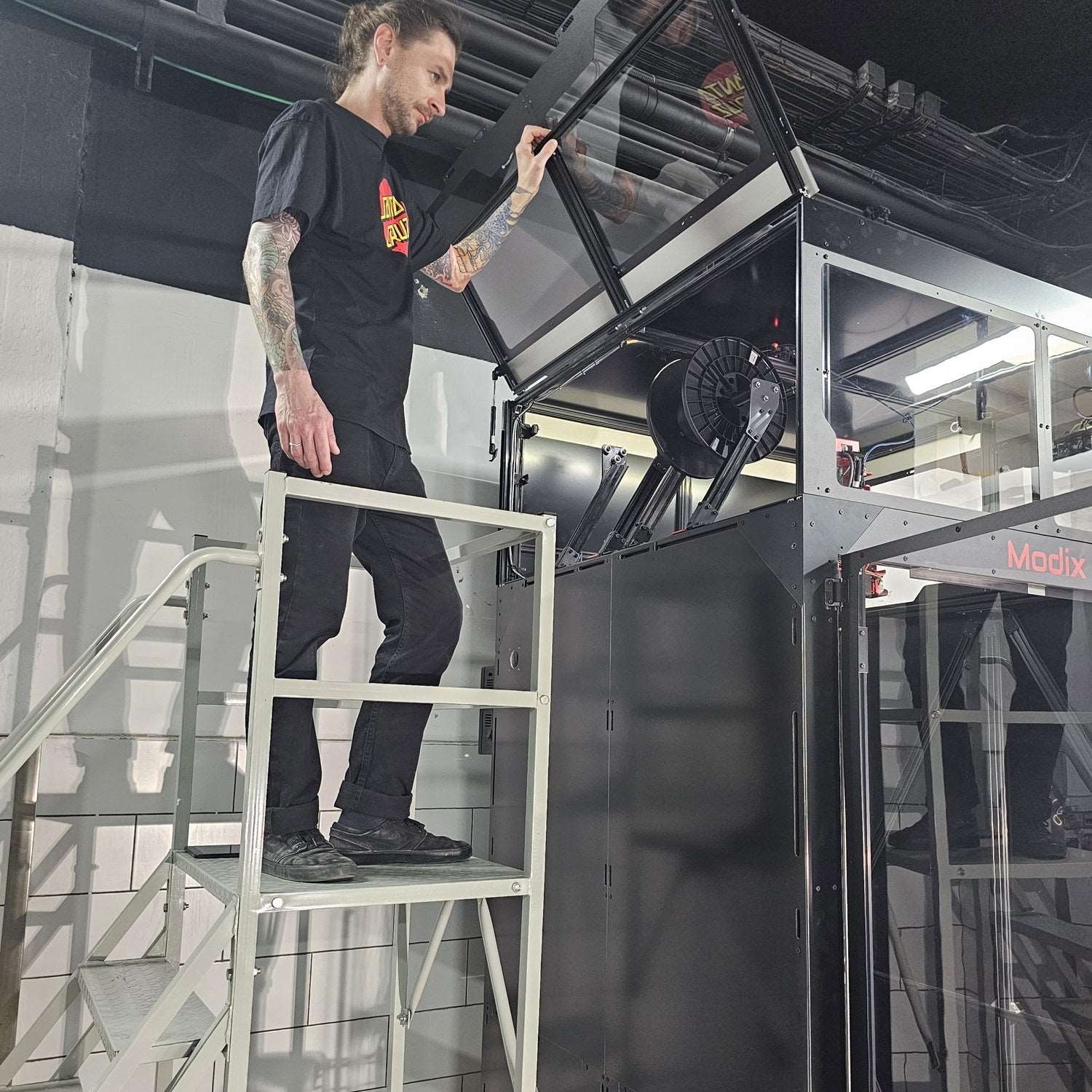

We have modified the top lid to hold the filament spools inside the printer so it will not fall on anybody.
Replacing spools and other ongoing maintenance and assembly will require working at heights. Please check your local regulations for the required safety equipment and instructions when working at such heights. We have found that a platform ladder is more convenient and safer than a standard ladder, especially when you climb up with a spool in your hands.
Please note that Modix does not include a ladder or other safety equipment with the printer. We recommend sourcing these locally based on your specific safety requirements and regulations.
Modix Everest Specifications
- Print Volume: A staggering 970 x 1,030 x 2,000 mm (XYZ)
When equipped with the Griffin Ultra print head. - Overall Size: 1,356 x 1,445 x 3,068 mm (XYZ)
Make sure your installation site has a tall ceiling. - Weight: 236kg
- Assembly: Served as a self assembly kit and therefore it can enter via narrow and short doorways. Please ask us about assembly services.
- Duet3D Wi-Fi 32 bit controller & Duex5 Expansion board
- Automatic bed tilt calibration & 100 probing point for bed levelling.
- Minimal Electricity requirements – single phase, 208-240V:
- EU/AU/UK customers: IEC 309 32A Blue (2P+E) outlet
- Price includes 12 months of warranty and lifetime support. Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years.
- Please select the correct regional shipping rate at the bottom.
Ordering add-ons later on, will require additional shipping fee.
Optional Add-ons can be purchased separately:
Magnetic Bed: Enjoy easy part removal and easier bed maintenance.
One side is coated with PEI powder, providing rough bottom texture and the other side is applied with a PEI sheet for a glossy bottom surface.
IDEX Dual Print-head: Print with a dedicated support material to easily print intricate models and reduce post-processing time. It can also be used as an automatic filament changer.
IDEX Calibration Tool: Achieve precision like never before with our hands-free calibration tool ensures optimal nozzle alignment.
Active Air Filter: Three phase filter device: Pre-filter (dust), HEPA (sub-micron particles) and active carbon filter (fumes).
Griffin Brass Nozzles: Griffin brass nozzles pack with 5 nozzles (0.4/0.6/0.8/1.0/1.2 mm).
A range of nozzle sizes for high-flow, fast printing. 0.4/0.6/0.8 already comes as default with the printer
Griffin Hardened Steel Nozzle Pack: The Griffin Hardened Steel Nozzles pack includes three nozzles (0.4/0.6/0.8mm) designed for printing abrasive materials such as carbon fiber-filled, glass fiber-filled, wood, and glitter without degradation. These nozzles are capable of withstanding temperatures up to 450°C.
Modix EVEREST – The Pinnacle of Large-Scale 3D Printing
Take your 3D printing capabilities to new heights with the Modix EVEREST, the ultimate high-performance, fully automated 3D printer designed for professionals who demand uncompromising precision and quality. With cutting-edge technology and an enormous build volume, the EVEREST is built to handle the most demanding industrial and prototyping tasks. Whether you’re working on complex components, large-scale models, or highly detailed prototypes, the EVEREST ensures flawless prints every time.
Why Choose the Modix EVEREST?
- Fully Automated Calibration – Enjoy perfectly calibrated prints with ease, ensuring flawless results without manual adjustments.
- Massive Build Volume – Print large objects up to 1,200 x 1,200 x 1,200 mm, perfect for oversized prototypes, industrial applications, and more.
- Advanced Dual-Extruder System – Achieve complex multi-material prints with ease using its advanced dual-extrusion technology, offering more versatility and precision.
- Industrial-Grade Reliability – Built with high-end components, including Hiwin linear rails and precision extruders, the EVEREST is made for continuous, high-volume printing.
- User-Friendly Interface & Remote Monitoring – Control your prints remotely with a touchscreen display, and monitor every step of the printing process for full control and convenience.
Built for Professionals & High-End Applications
The Modix EVEREST is designed for professionals who require the ultimate performance in large-scale 3D printing. It is perfect for engineers, designers, and manufacturers who need to push the boundaries of prototyping and industrial printing. Whether you’re working on large mechanical parts, functional prototypes, or architectural models, the EVEREST offers unparalleled accuracy, speed, and reliability. Thanks to its fully automated calibration system, you can focus on innovation while the EVEREST handles the technical side of things.
Contact us for pricing and discover how the Modix EVEREST can transform your 3D printing projects into reality. 🚀
