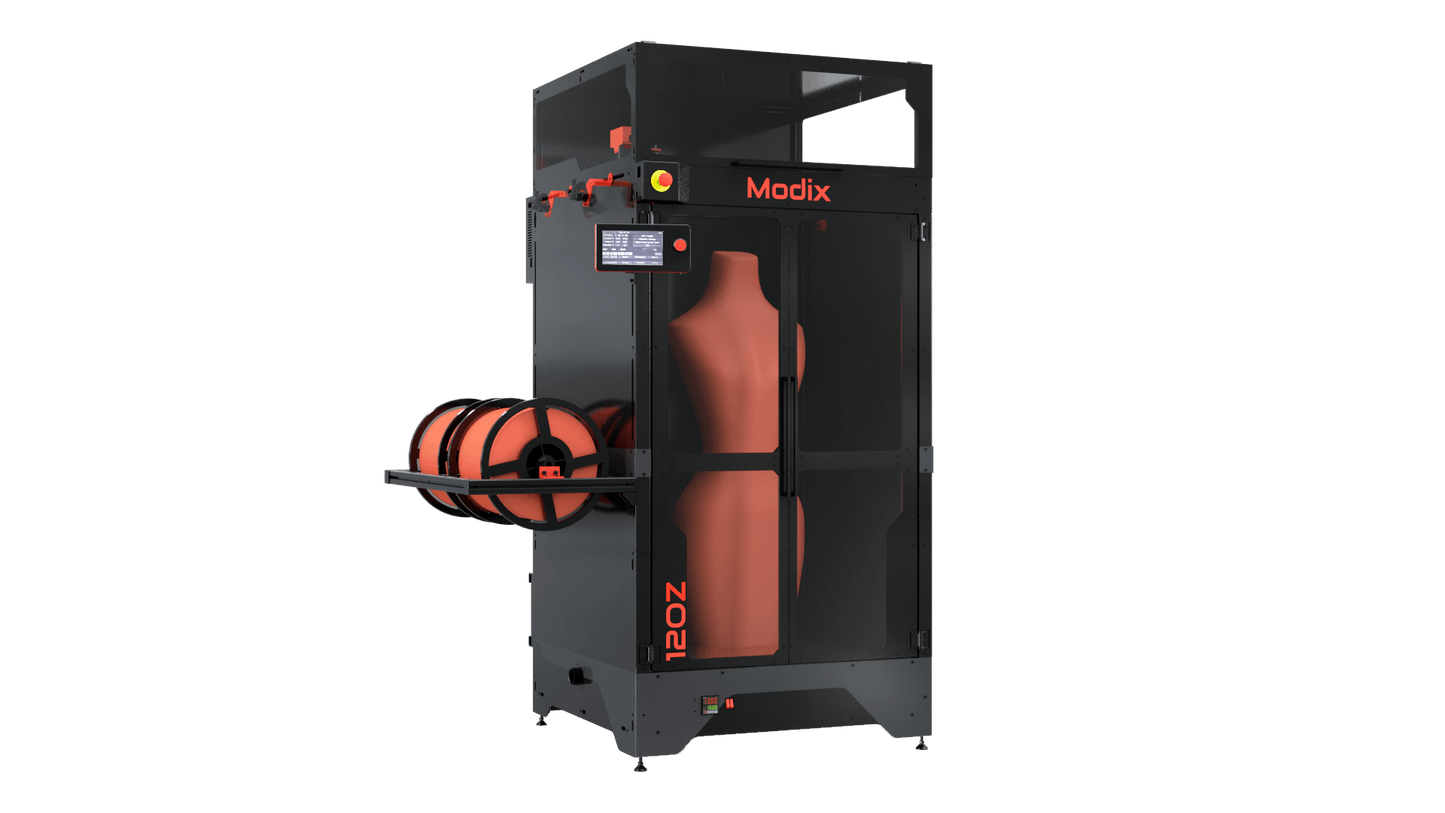

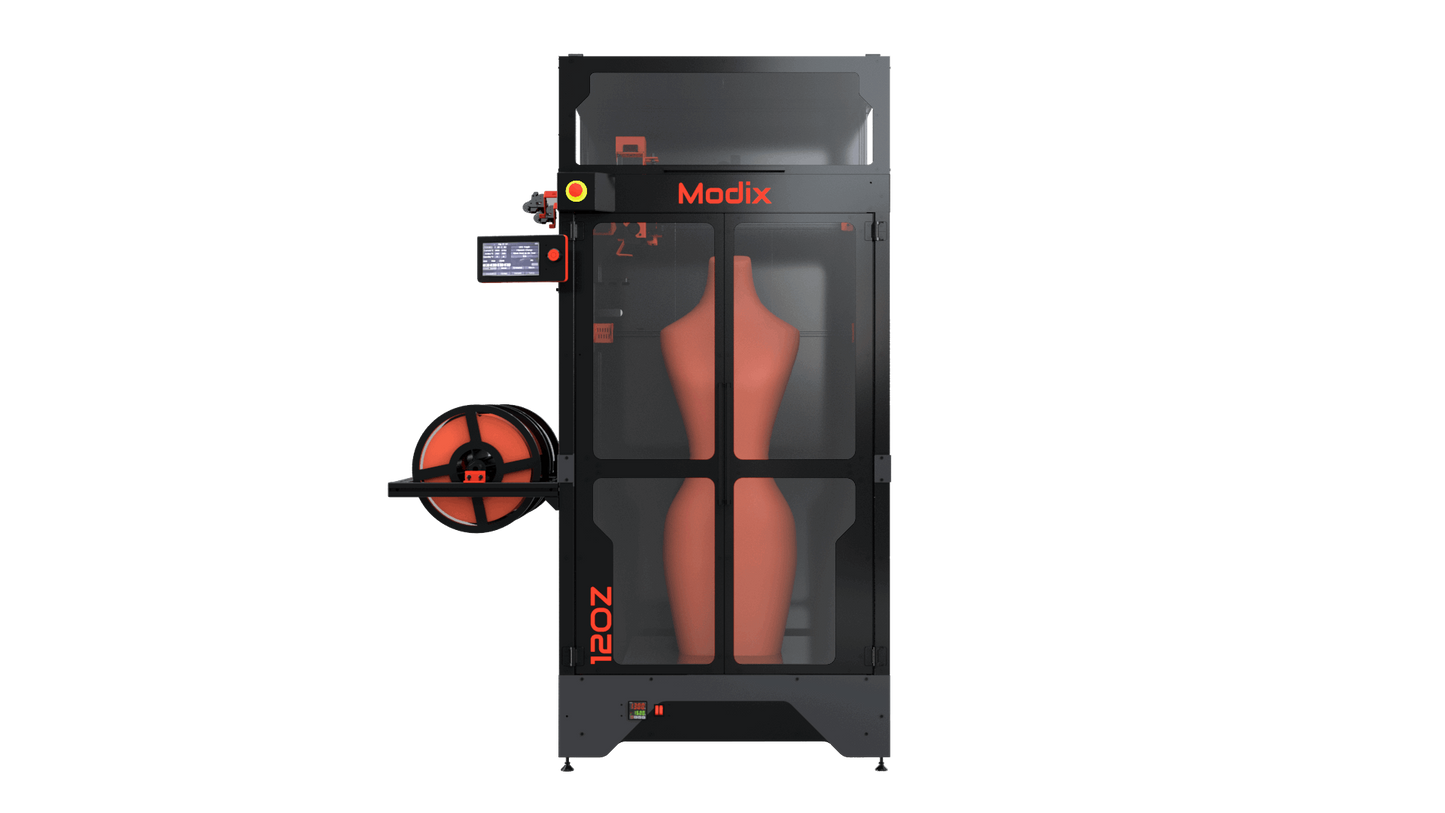

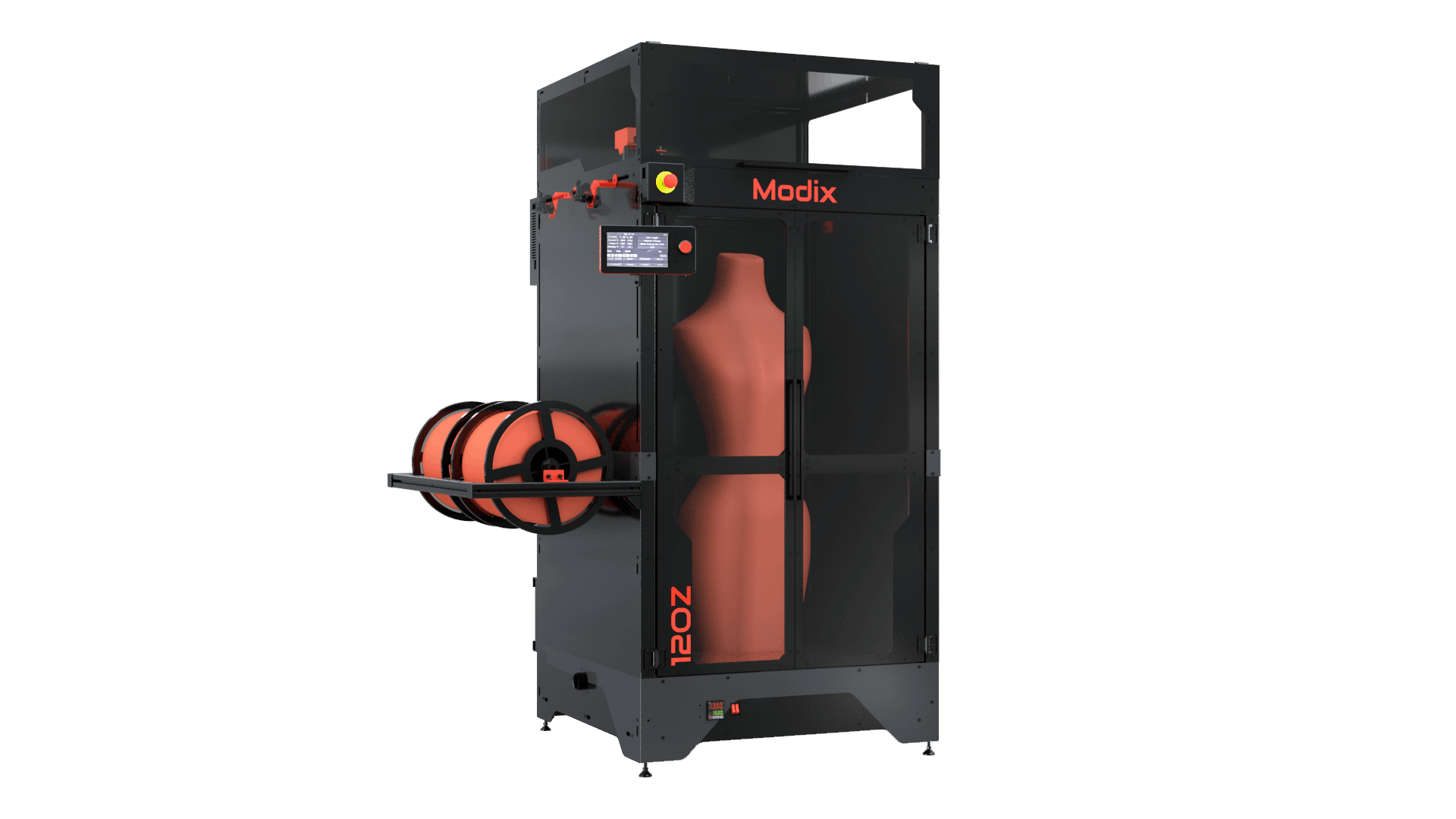

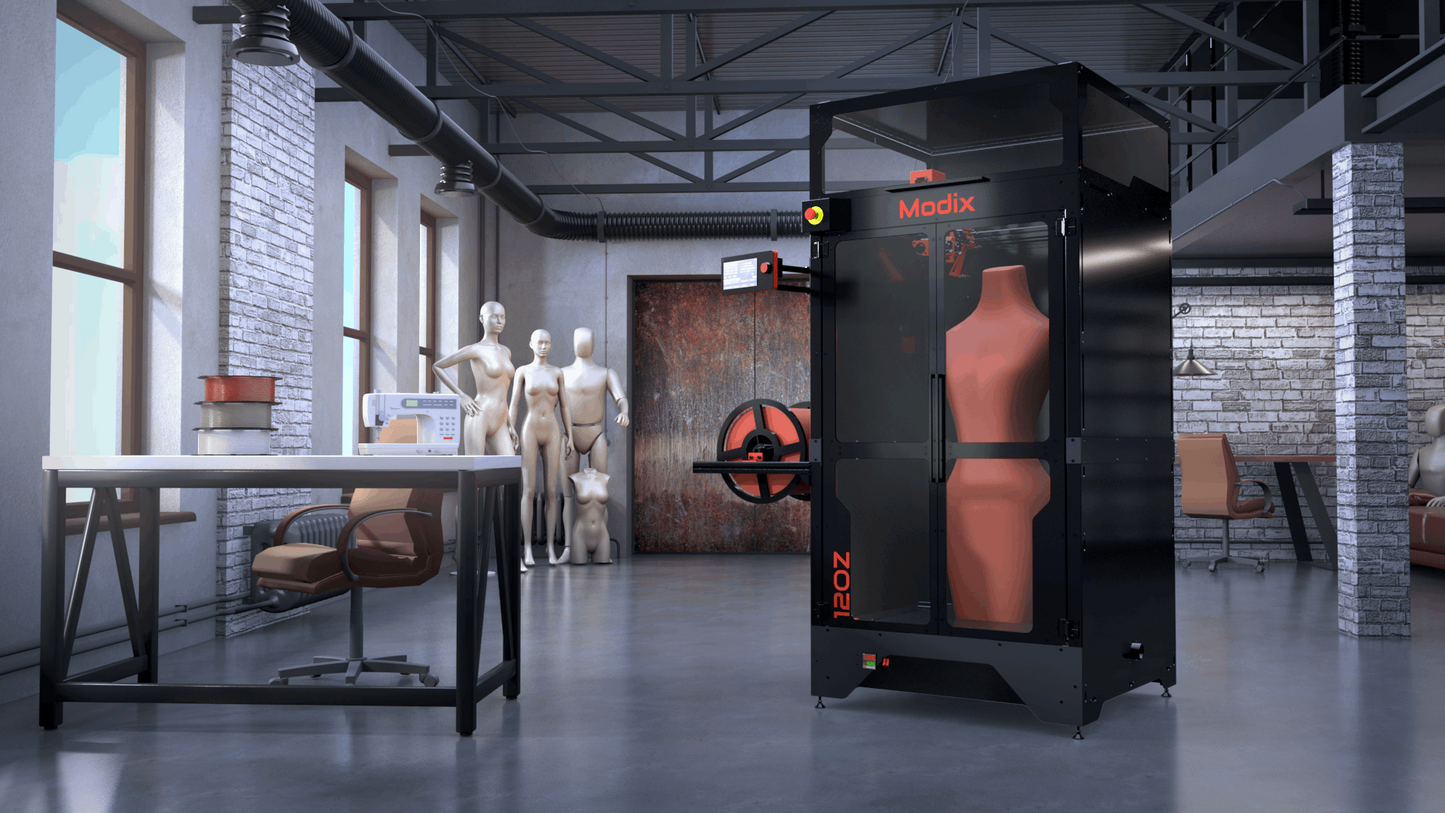

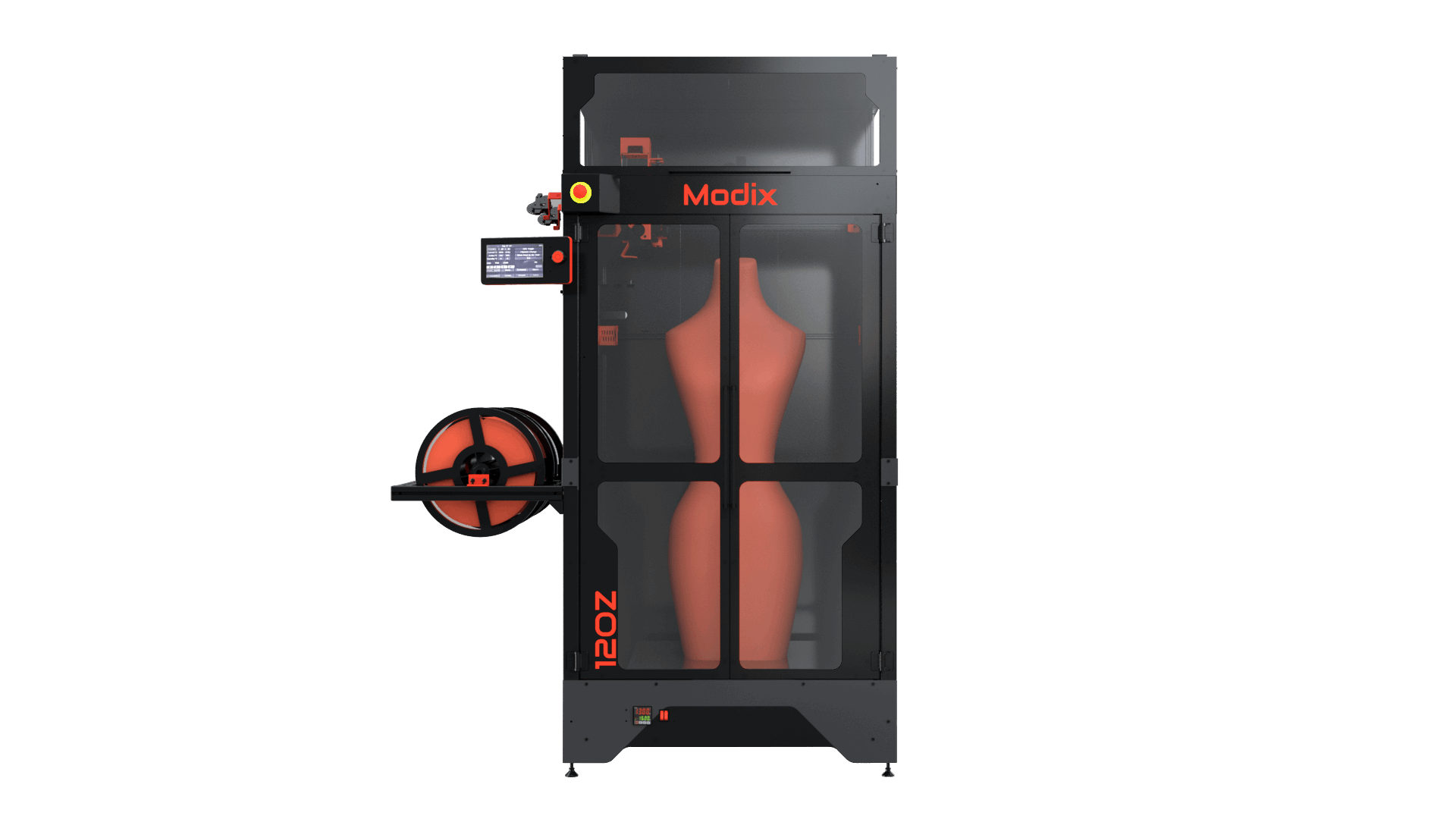

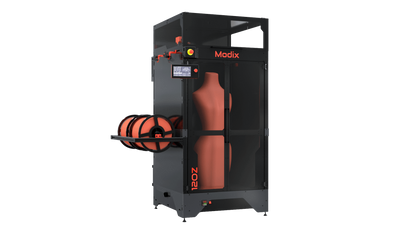

Modix BIG-120Z 3D printer is a unique 3D printer that allows printing tall objects in one piece which make them stronger and reduce post processing time. BIG-120Z is a perfect match for the needs of the visual communication, interior design, art, mannequin, props, entertainment and engineering industry.
BIG-120Z Specifications:
- Build it yourself: self assembly kit
- Print volume: 600 x 600 x 12000 mm (XYZ)
- Machine Size: (WxDxH): 906x 1060x 2066 mm
- Shipping Weight: 140kg (depend on add-ons selection)
- Enclosure: Included on all models we sell
- Casters: Included on all models we sell
- IDEX: Secondary print head – Available on 3 models
- Stock with IDEX
- Recommended
- Kitchen Sink
- Price includes 12 months of warranty and lifetime support: Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years
Chassis & Enclosure
- Solid 40X40 T-slot aluminum profiles
- Powder coated laser cut aluminum brackets and joints

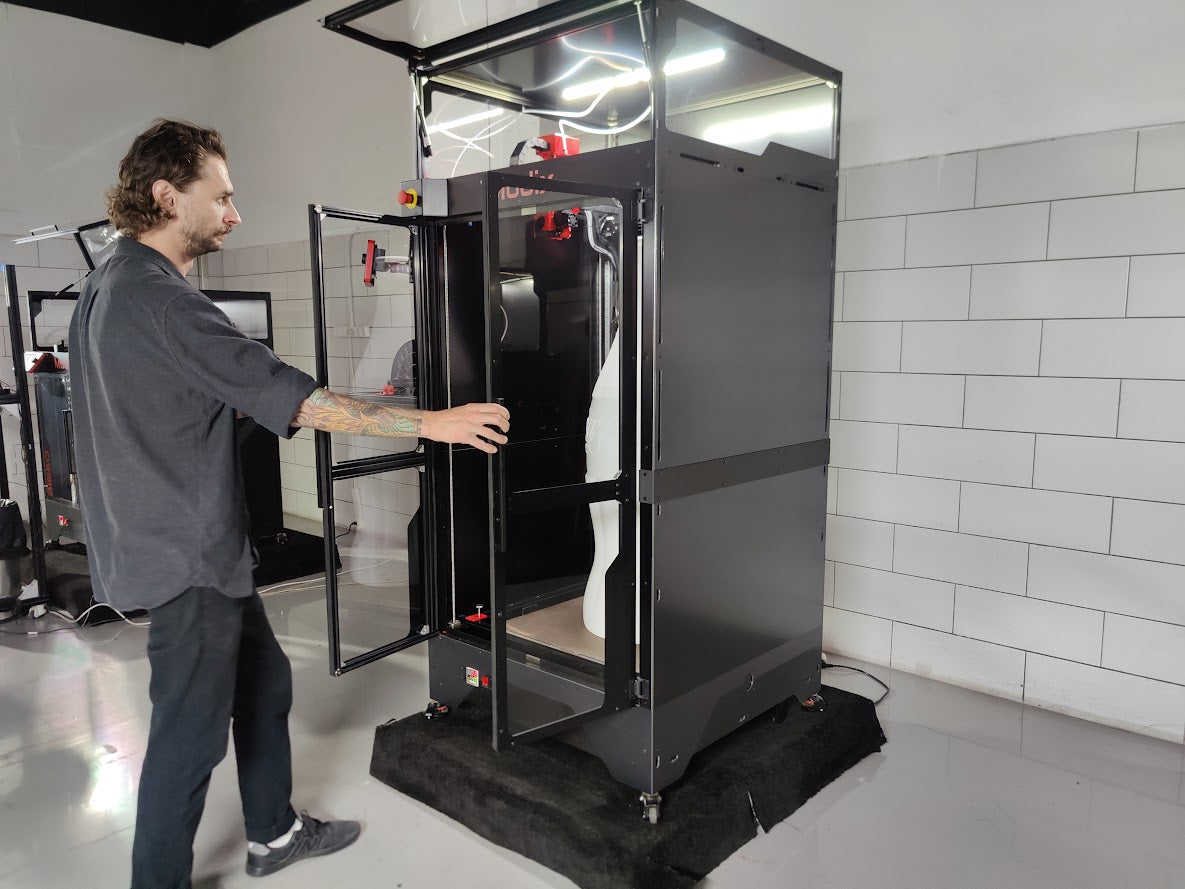

- Enclosure – Closed enclosure made of 3mm black Aluminum Composite Panels (ACP).
Electronic Controller
Duet 2 WiFi, a powerful 3D Printer controller made in the UK. Duet is a well known and widely supported electronic platform for professional 3D printers. It is made by a respectful company and it is a major factor in our ability to provide ongoing high level of quality and reliability:
- Powerful 32 Bit Processor
- Dedicated WiFi module with external antenna
- Quiet TMC2660 stepper drivers, up to 256 micro-stepping
- High speed USD card and support for a second external SD card if required
- Dual extruders controlled on the main board, up to 5 additional stepper motor drivers are controlled on the DUEX expansion board
- High Power Rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A
- Access the printer via a PC, tablet or smartphone on a local network
- Set up and control your printer through the web interface
Fully Automated Calibration
All our printers’ models are delivered with the electronic expansion board named Duex. This allows allocating a dedicated driver per each motor for both Z axis and X axis. As a result, Modix is now offering a full set of automated calibrations routines including:
- Bed tilting calibration
- Bed leveling
- Gantry alignment
- Z offset calibration
Improved Generation 4 Offering
With generation 4, all Modix 3D printers are now shipped with the new Griffin print head, clog and crash detectors.
IDEX allows printing of models with internal geometries, provides high quality surface finish while reduces post processing labor.
Griffin print head offers high printing quality, impact resist, easy swap and higher printing temperatures than before.
Reliability sensors suite that is designed to save print-jobs on time. It can detect filament run-out, under extrusion and clogs.
Comprehensive set of automatic calibration tools including: bed tilt calibration, bed leveling, gantry alignment and Z offset calibration.
Modix BIG-120Z V4 – The Ultimate High-Z 3D Printer for Professionals
Step into the future of large-format vertical 3D printing with the Modix BIG-120Z V4. Designed for professionals who need precision, automation, and an extended Z-axis, this best-in-class 3D printer machine allows you to create tall, detailed prints with minimal effort. Featuring fully automated calibration, industrial-grade components, and a massive build height, the BIG-120Z V4 is perfect for engineers, designers, and manufacturers looking for flawless, large-scale printing.
Why Choose the Modix BIG-120Z V4?
- Fully Automated Calibration – Achieve precise bed leveling and nozzle calibration for consistently high-quality prints with zero manual effort.
- Extra-Tall Build Volume – Print massive designs up to 600 x 600 x 1,200 mm, perfect for architectural models, prototypes, and industrial parts.
- Industrial-Grade Components – Built with Hiwin linear rails, a sturdy aluminum frame, and a dual-drive extruder, ensuring top-tier stability and accuracy.
- Smart, User-Friendly Interface – A responsive touchscreen, remote monitoring, and an intuitive control system simplify operation for seamless printing.
- Multi-Material & High-Speed Printing – Print with PLA, ABS, PETG, carbon fiber, and more, all while maintaining exceptional speed and precision.
Designed for Professionals & Advanced Applications
The Modix BIG-120Z V4 is the ultimate tool for professionals in engineering, architecture, and industrial manufacturing who require large, high-detail vertical prints. With its fully automated calibration system, users can focus on innovation while the printer ensures perfectly tuned settings for every print. Whether you need oversized prototypes, tall functional parts, or intricate industrial designs, this cutting-edge 3D printer delivers unmatched performance, accuracy, and reliability.
Take your large-scale 3D printing to new heights with the Modix BIG-120Z V4—where precision, automation, and vertical innovation come together. 🚀
