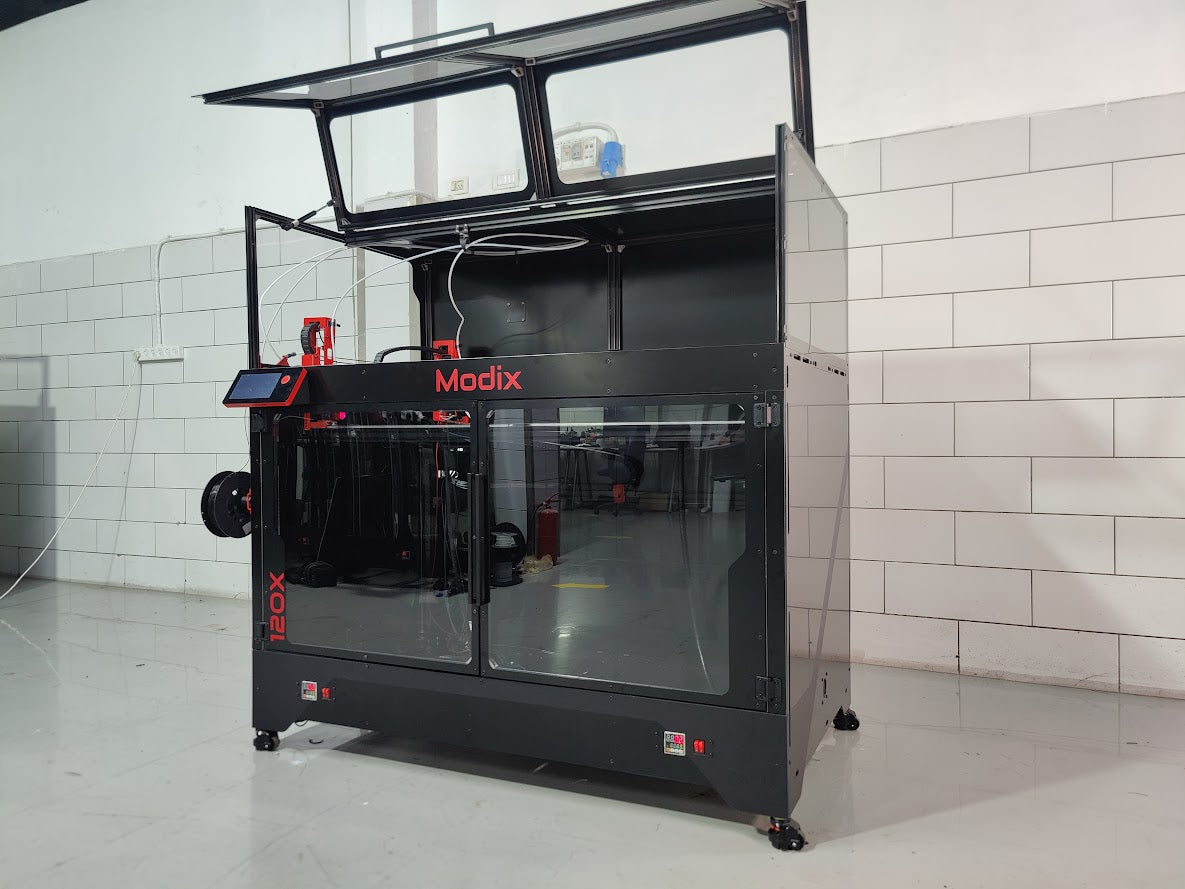

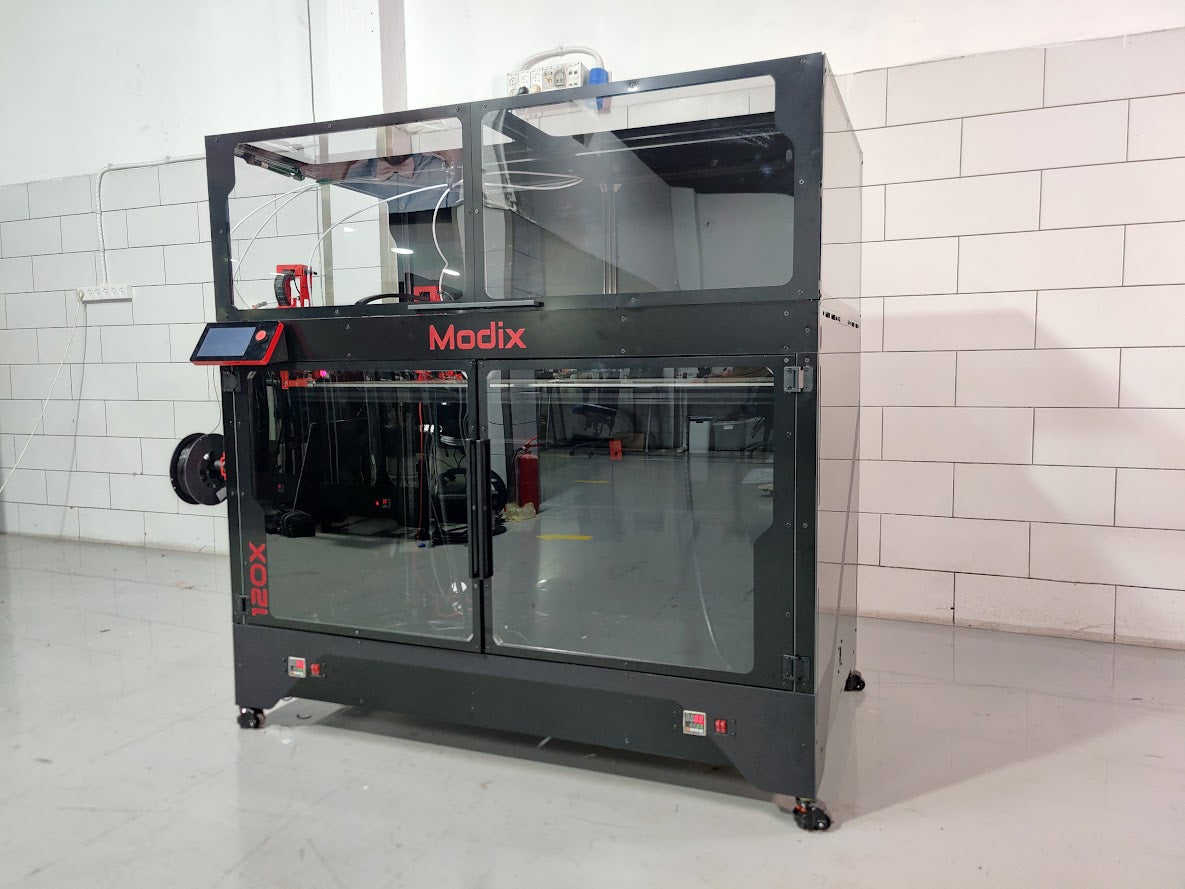

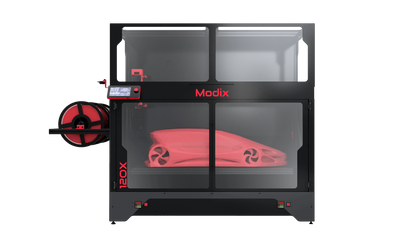

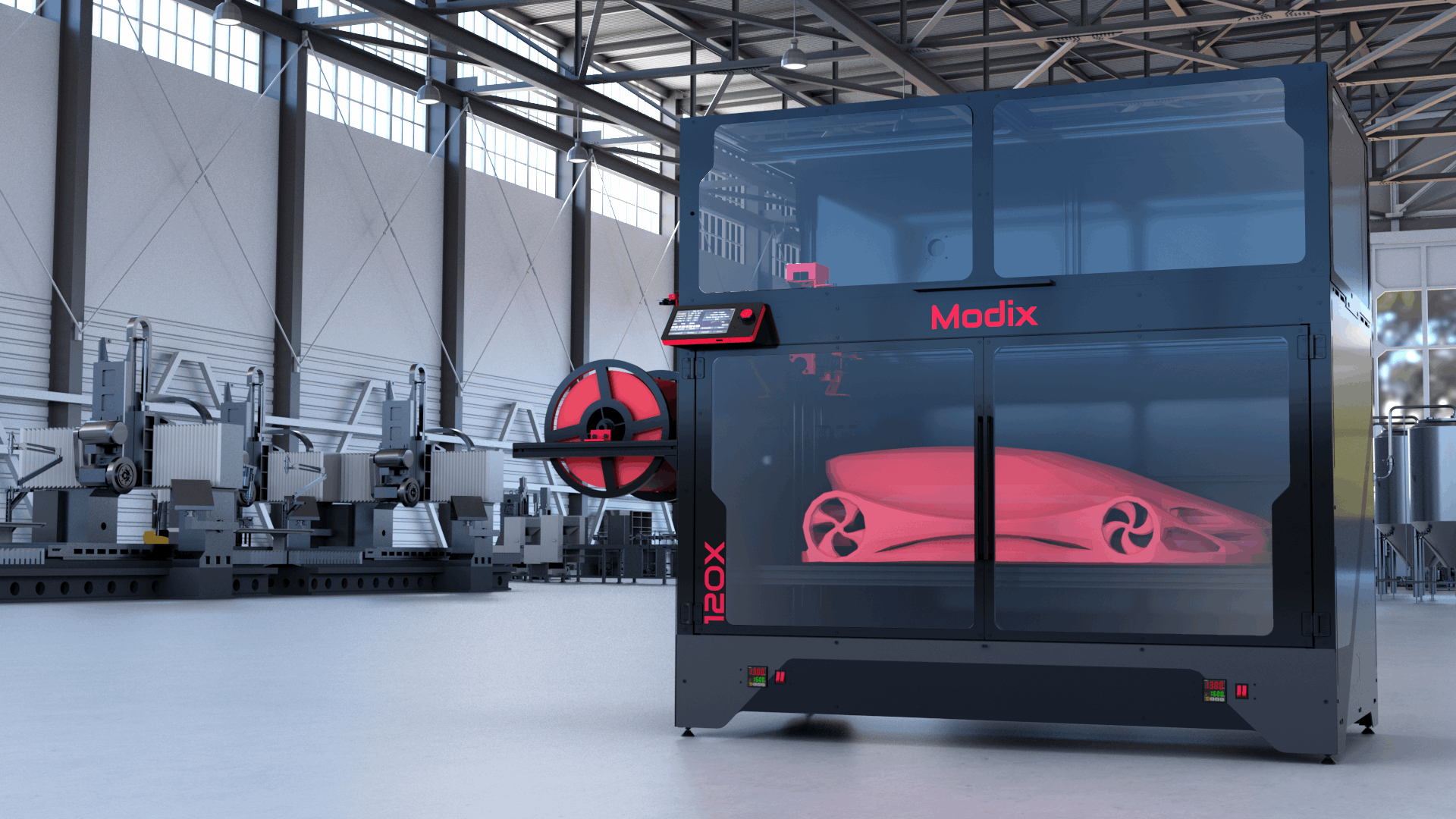

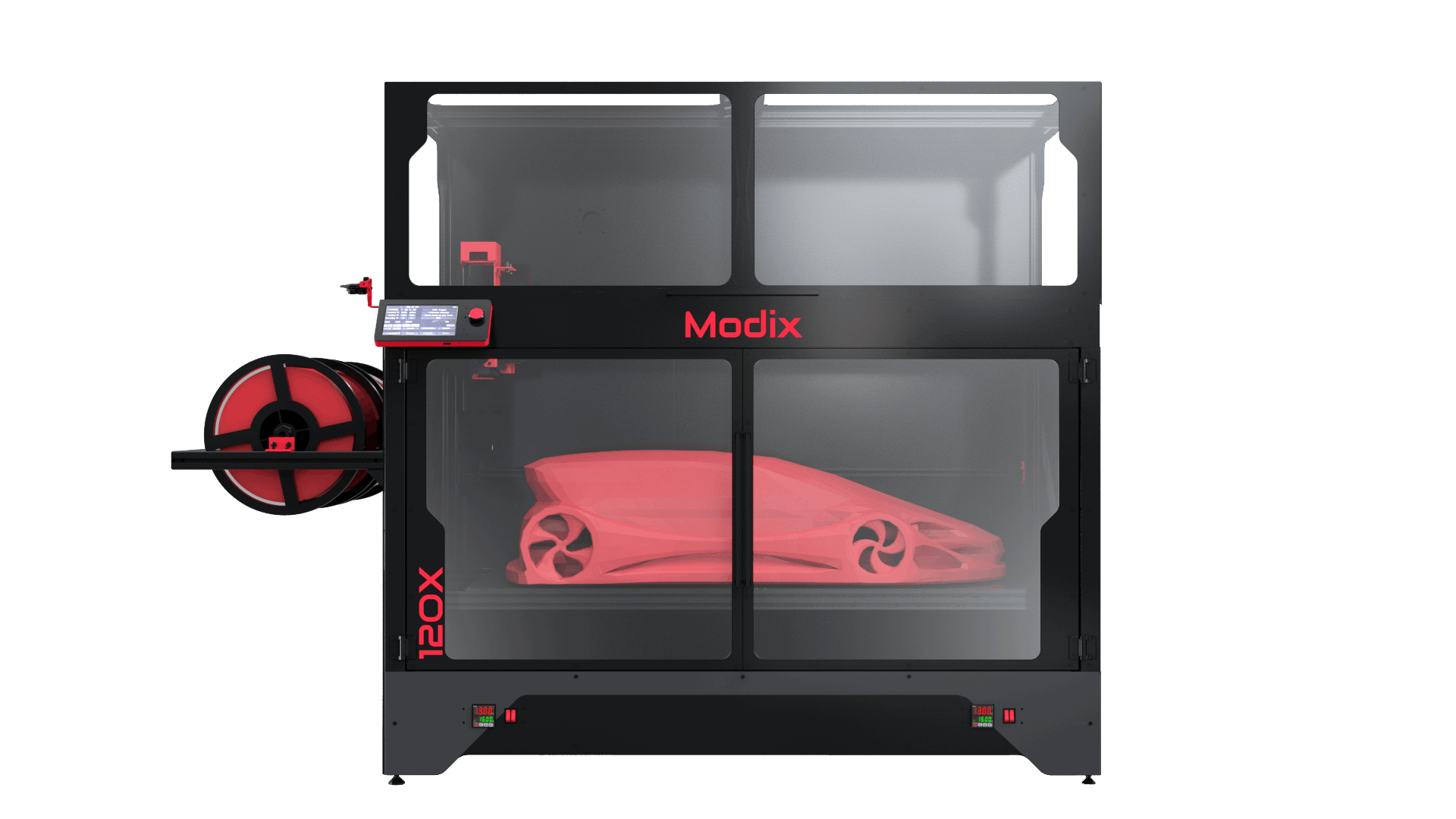

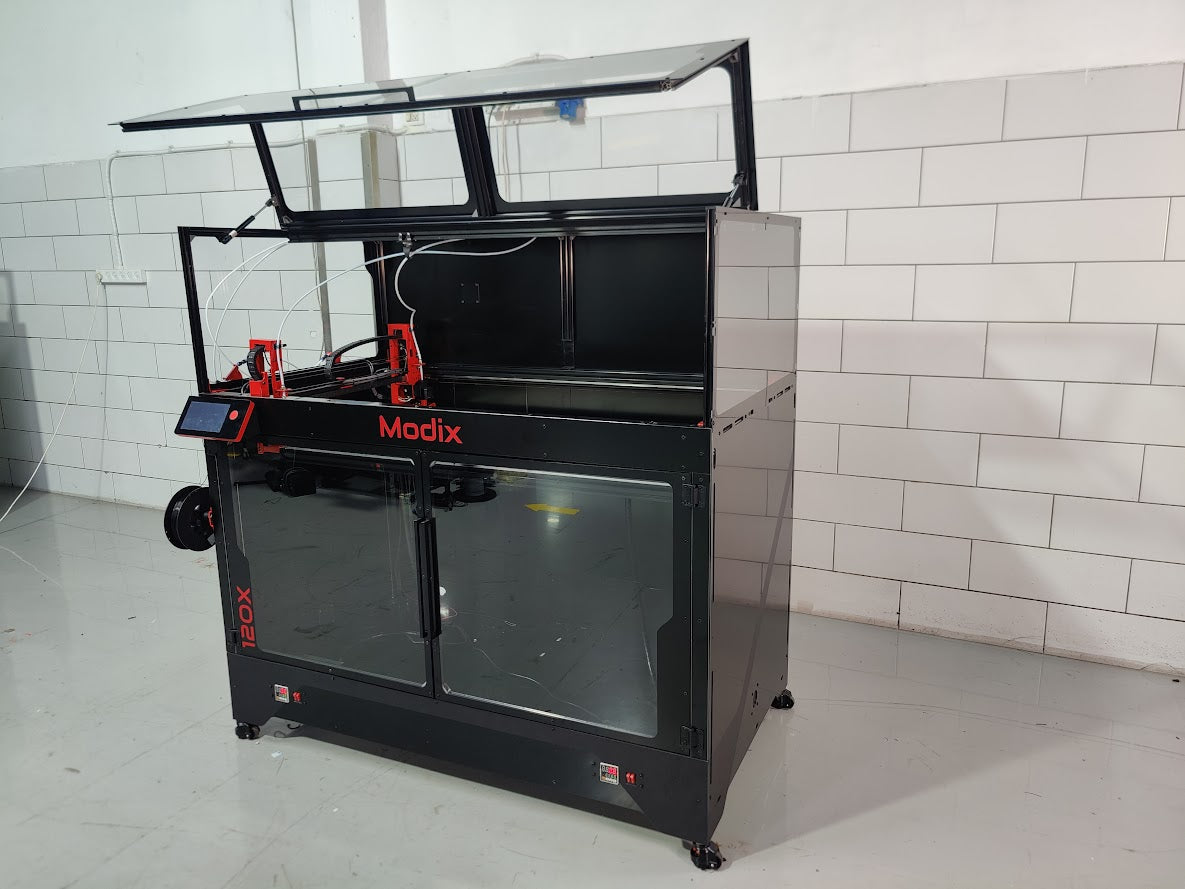

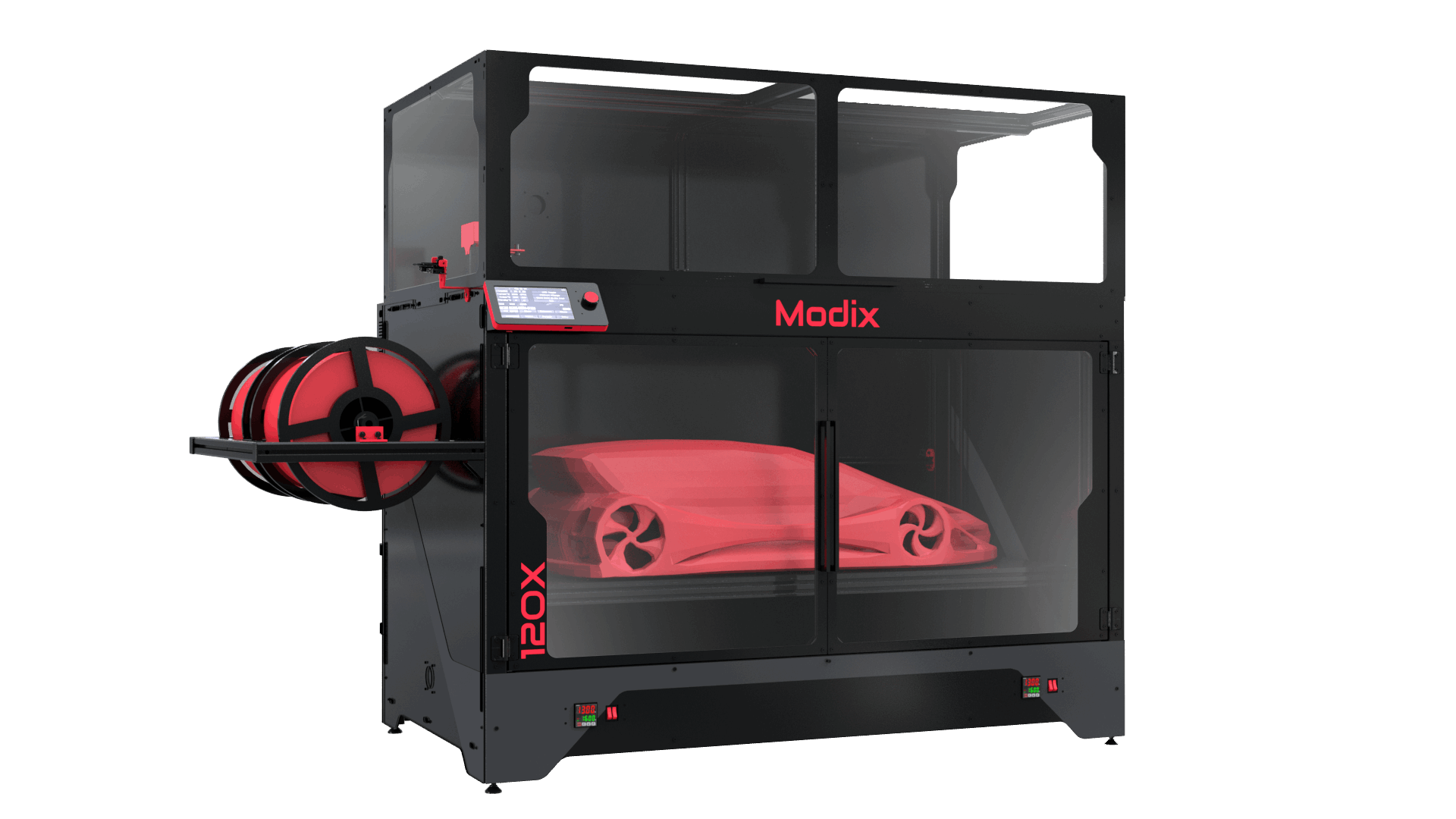

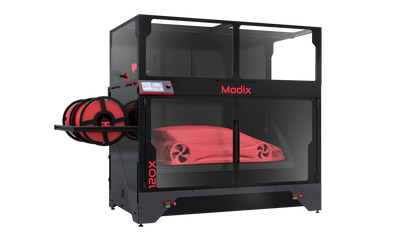

Modix BIG-120X V4 3D Printer

Modix BIG-120X V4 3D Printer

$18,499.95 AUD
$18,499.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Packages
View full details

Modix BIG-120X printer was first introduced in late 2018. Similar to BIG-60, it has all the latest components of Generation 4 and enjoy the same level of modular offering to better match your needs and budget.

With generation 4, all Modix 3D printers  are now shipped with the new Griffin print head, clog and crash detectors.



BIG-120X Specifications:

  • Build it yourself:  self assembly kit
  • Print volume:  1200 x 600 x 660 mm (XYZ)
  • Machine Size:  (WxDxH): 1556x1060x1,506 mm
  • Shipping Weight:  170kg (depend on add-ons selection)
  • Enclosure:  Included on all models we sell
  • Casters:  Included on all models we sell
  • IDEX:  Secondary print head –  Available on 3 models
    • Stock with IDEX
    • Recommended
    • Kitchen Sink
  • Price includes 12 months of warranty and lifetime support:  Warranty does not include degradable (PEI sheet and nozzles) and consumables.  Warranty can be extended up to two additional years.

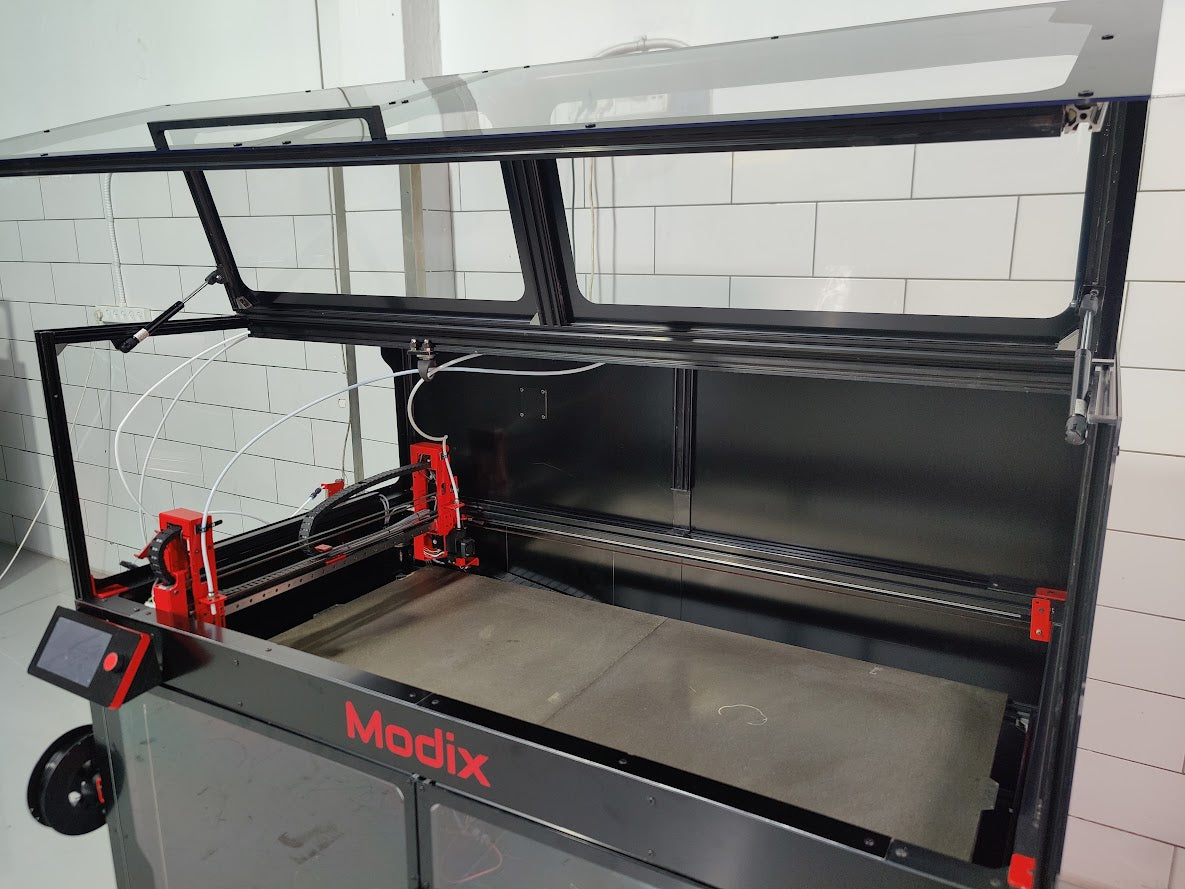

Chassis & Enclosure

  • Solid 40X40 T-slot aluminum profiles
  • Powder coated laser cut aluminum brackets and joints
  • Enclosure – Closed enclosure made of 3mm black Aluminum Composite Panels (ACP).

Electronic Controller

Duet 2 WiFi, a powerful 3D Printer controller made in the UK.  Duet is a well known and widely supported electronic platform for professional 3D printers.  It is made by a respectful company and it is a major factor in our ability to provide ongoing high level of quality and reliability:

  • Powerful 32 Bit Processor
  • Dedicated WiFi module with external antenna
  • Quiet TMC2660 stepper drivers, up to 256 micro-stepping
  • High speed USD card and support for a second external SD card if required
  • Dual extruders controlled on the main board, up to 5 additional stepper motor drivers are controlled on the DUEX expansion board
  • High Power Rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A
  • Access the printer via a PC, tablet or smartphone on a local network
  • Set up and control your printer through the web interface

Fully Automated Calibration

All our printers’ models are delivered with the electronic expansion board named Duex. This allows allocating a dedicated driver per each motor for both Z axis and X axis. As a result, Modix is now offering a full set of automated calibrations routines including:

  • Bed tilting calibration
  • Bed leveling
  • Gantry alignment
  • Z offset calibration

Improved Generation 4 Offering

With generation 4, all Modix 3D printers  are now shipped with the new Griffin print head, clog and crash detectors.

    Modix BIG-120X V4 – Large-Format 3D Printing with Precision & Automation

    Take your professional 3D printing to the next level with the Modix BIG-120X V4, a high-performance large-format 3D printer engineered for precision, automation, and reliability. With fully automated calibration, a massive build volume, and industrial-grade components, this state-of-the-art 3D printer machine is designed for engineers, manufacturers, and product designers who demand flawless, large-scale prints with minimal effort.

    Why Choose the Modix BIG-120X V4?

    • Fully Automated Calibration – Achieve perfect bed leveling and nozzle calibration automatically for consistent, high-quality prints.
    • Expansive Build Volume – Print large-scale designs up to 1,200 x 600 x 640 mm, ideal for prototyping, engineering, and industrial production.
    • Industrial-Grade Components – Built with Hiwin linear rails, a rigid aluminum frame, and a dual-drive extruder for superior stability and accuracy.
    • Smart & Intuitive Interface – Featuring a responsive touchscreen, remote monitoring, and easy controls for seamless operation.
    • Multi-Material High-Speed Printing – Compatible with PLA, ABS, PETG, carbon fiber, and other advanced materials, while maintaining speed and precision.

    Designed for Professionals & High-Performance Applications

    The Modix BIG-120X V4 is built for engineers, manufacturers, and designers who require large-format 3D printing with precision and automation. Its fully automated calibration system ensures optimal print accuracy with minimal manual intervention, allowing professionals to focus on creativity and production efficiency. Whether you're printing oversized prototypes, functional components, or intricate industrial designs, this cutting-edge 3D printer delivers exceptional performance, reliability, and high-quality results.

    Upgrade your large-scale 3D printing capabilities with the Modix BIG-120X V4—where automation, precision, and size redefine professional printing. 🚀
