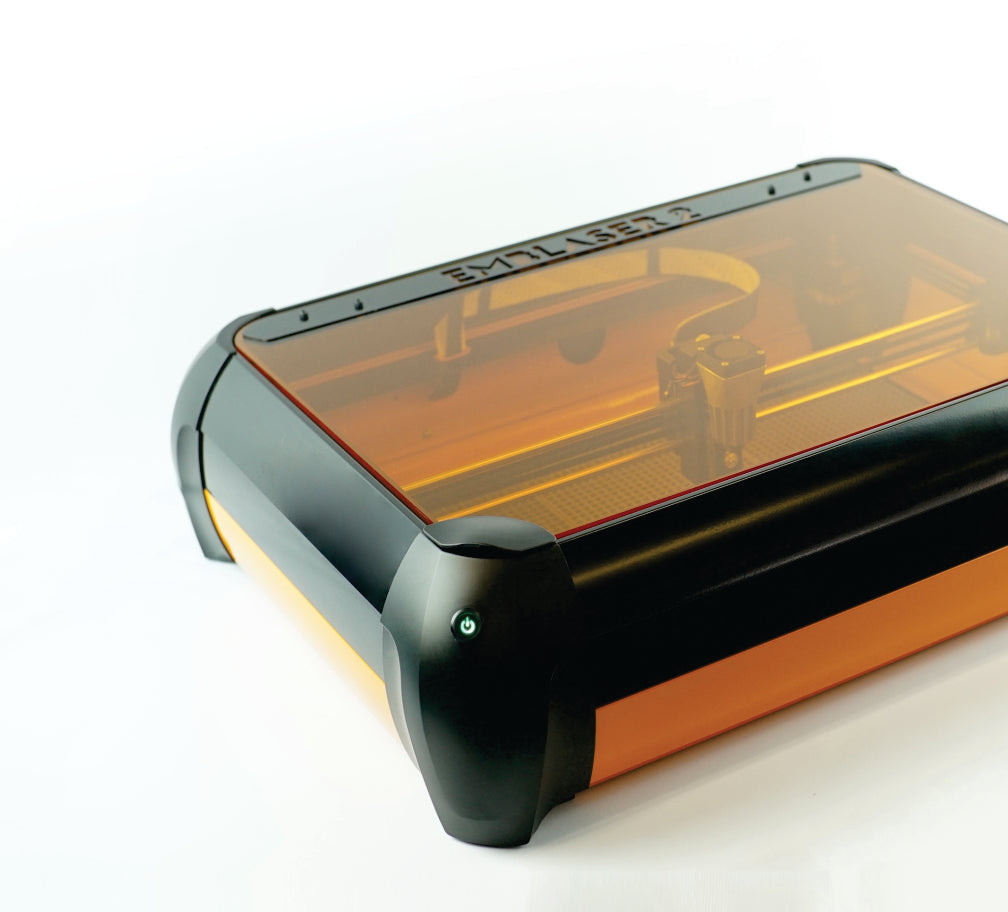

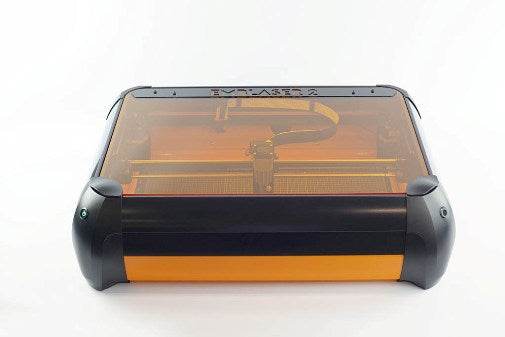

Emblaser

Emblaser 2 Bundles - Includes air-assist, filtration unit, F2000, spare filter & lightBurn

Emblaser 2 Bundles - Includes air-assist, filtration unit, F2000, spare filter & lightBurn

Regular price $5,156.95 AUD
Regular price Sale price $5,156.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
View full details

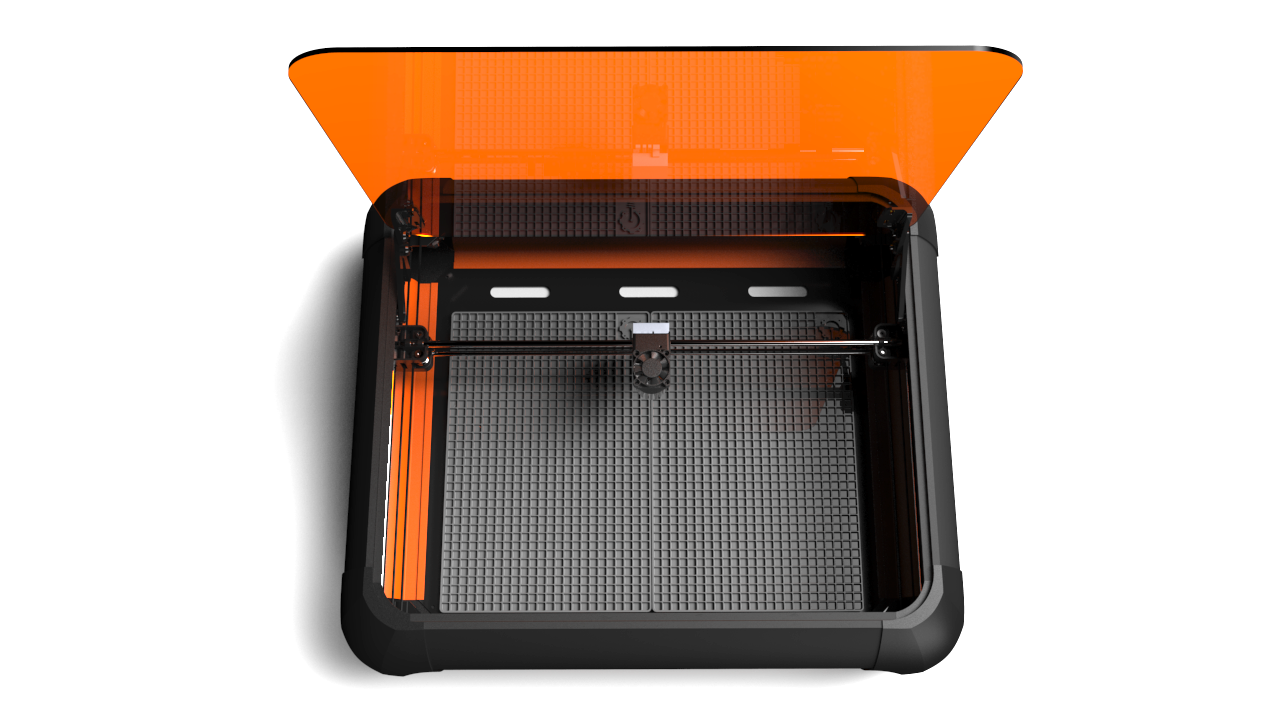

Larger Workspace


Working on larger materials is now possible with a 500mm x 300mm (19.66″ x
11.81″) work area.

The maximum material height has also been increased to 50mm (1.97″)

Wifi & USB Connectivity

Use your Emblaser 2 wirelessly or enjoy the reliability of a direct USB connection.
The choice is yours.

More Laser Power

Our 2nd Generation Laser Unit and electronics set a new standard for power and
efficiency.

Air Assist

Air-Assist increases cutting performance and creates cleaner cuts by injecting a
stream of high pressure air into the cutting region.

Traditionally only available in industrial machines, the Emblaser 2 comes ready to
accept our air-assist accessory.

Here is difference air-assist can make on various materials. The left cut is without
air-assist running.

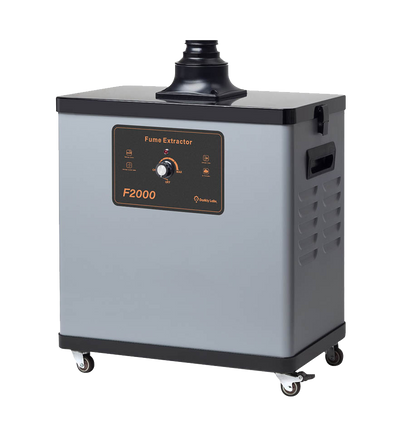

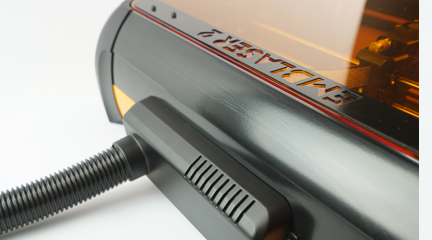

Fume Extraction /Filtering

Clearing fumes is critical to maintaining clean optics and optimal cutting.

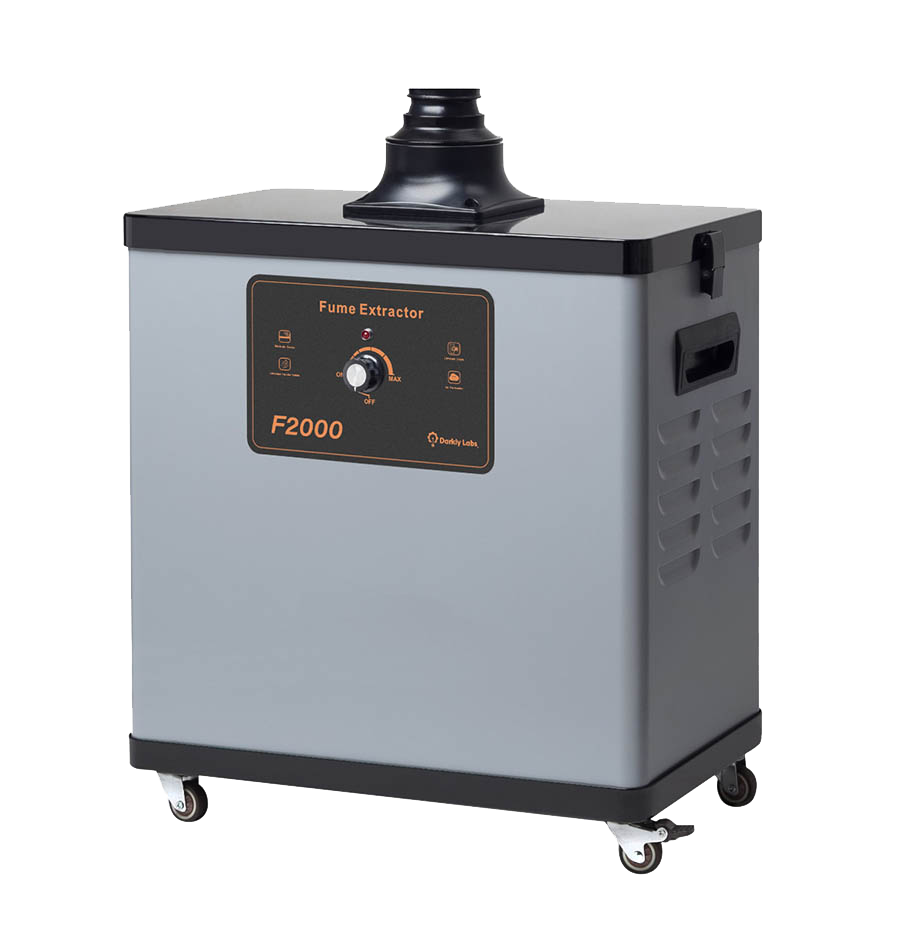

Use the inbuilt fume extractor to vent fumes outdoors or add the our Fume Filter
System to safely filter fumes for complete indoor use.

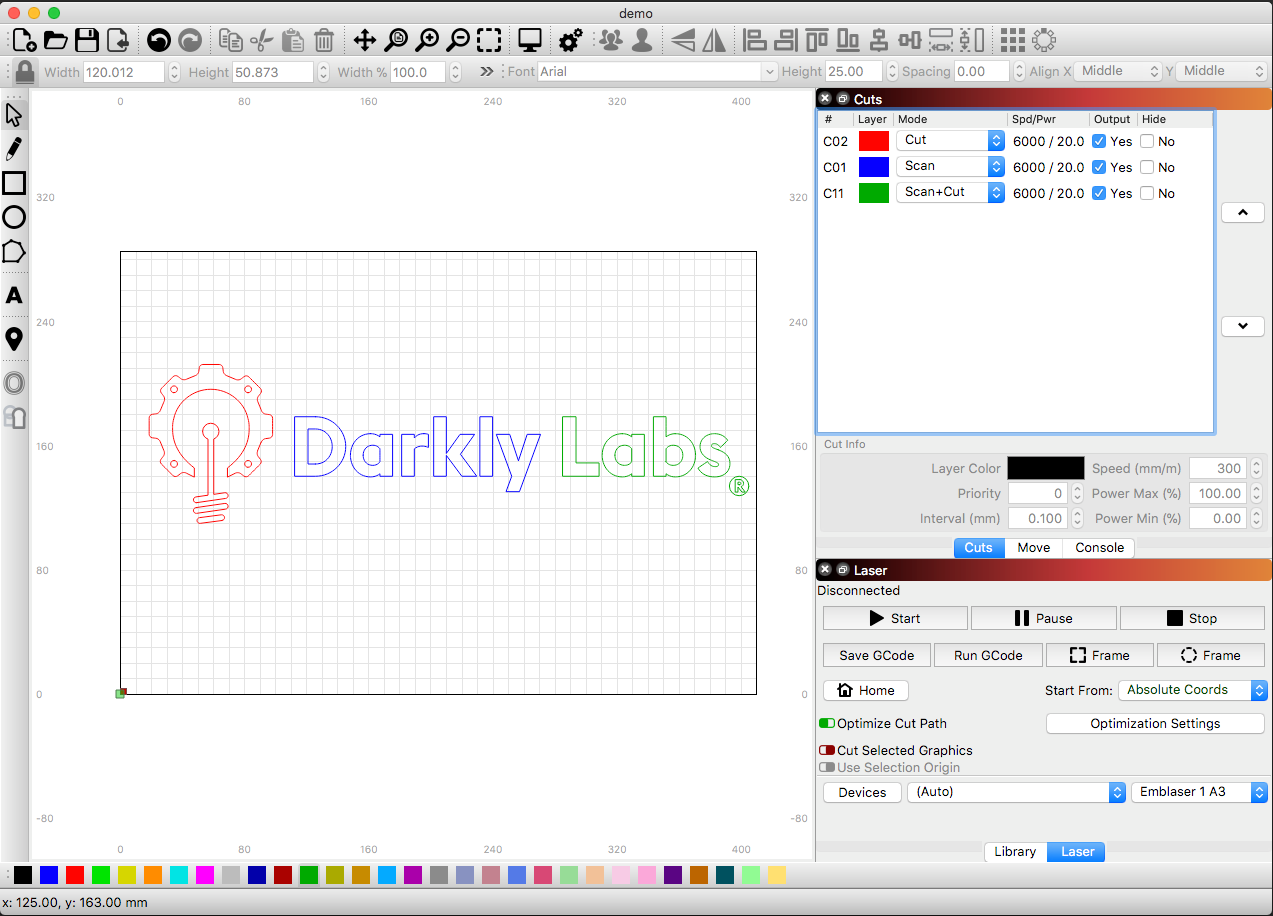

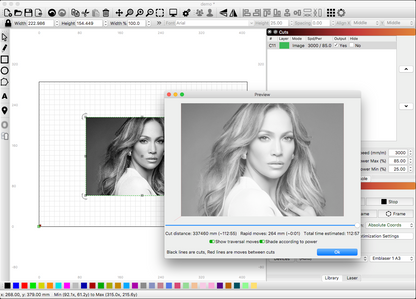

Software – Lightburn

Work with the software you are familiar with to create your designs. LightBurn will
import all standard formats from software such as Adobe Illustrator, Photoshop,
Inkscape, Corel Draw etc.

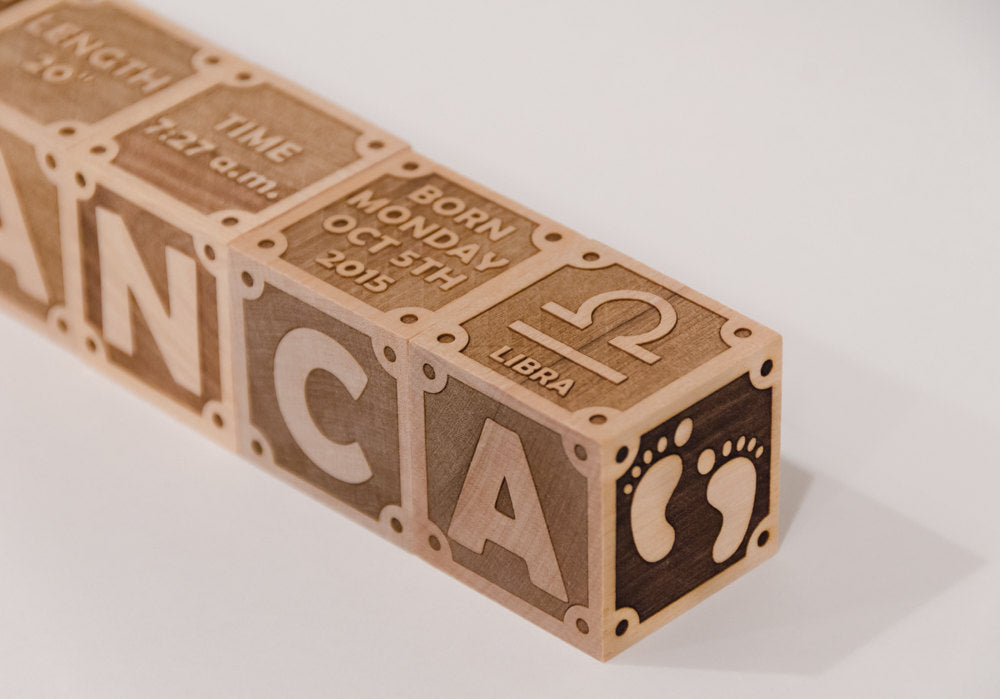

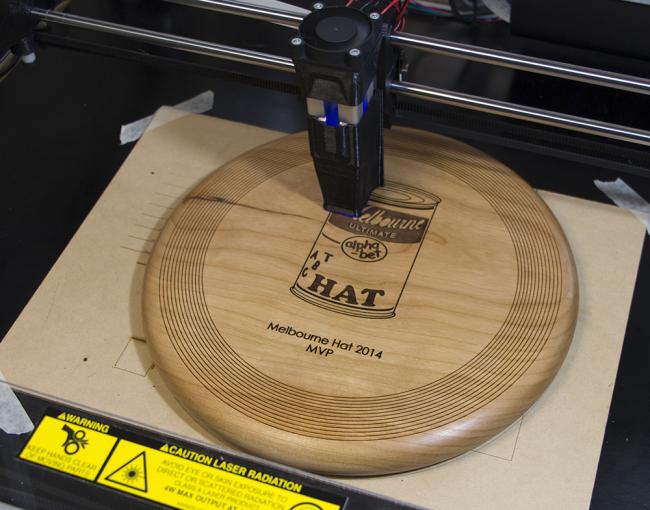

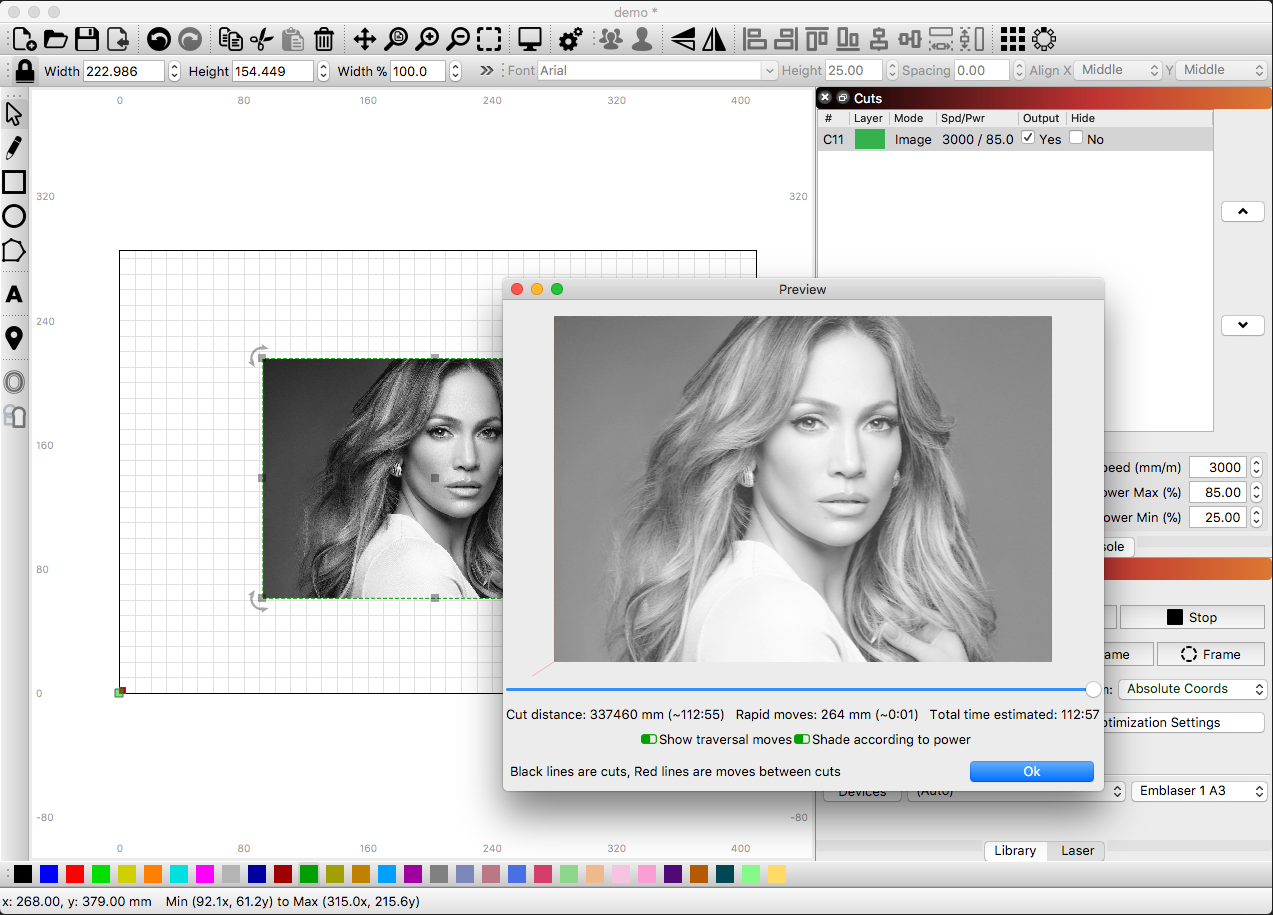

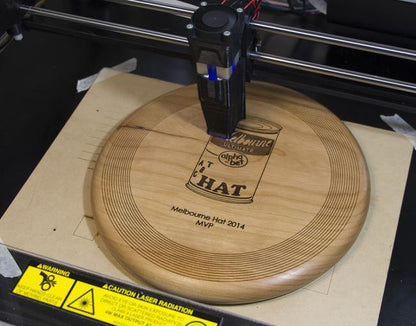

Precisely cut out your artwork or create incredible engravings from your photos all in
the one place.   LightBurn gives you full control over the Emblaser 2.

Commonly Used Materials

THICKNESS ENGRAVED CUT NOTES
Fabric - Cotton 3mm Y Y
Fabric - Felt 6mm N Y All colors except white.
Leather - Vegetable Tanned 4mm Y Y Treatment & color dependant.
Air-Assist recommended.

Paper/Card - Corrugated Cardboard 6mm Y Y
Paper/Card - Pasteboard 2.6mm Y Y
Paper/Card - Plain Paper 3mm Y Y Any color.
Plastic - Acrylic Black 5mm Y Y
Plastic - Acrylic Green, Red Yellow 3mm Y Y
Plastic - Acrylic Translucent (tinted) - Y N
Plastic - Acrylic Blue - Y N
Plastic - Acrylic Transparent &
White

- N N Possible with coating

Plastic - Polypropylene 3mm Y Y Air-Assist recommended.
Wood - Poplar Plywood 6mm Y Y
Wood - Balsa 10mm Y Y
Wood - MDF 3mm Y Y
Anodised Aluminium - Y N
Slate - Y N
Corkboard 3.0mm Y Y Air-Assist required.
Rubber 2.0mm Y Y Air-Assist recommended.

Technical Specifications

Dimensions
External Dimensions 540mm x 720mm x 200mm
(21.25" x 28.35" x 7.8")
Material Capacity 500mm x 300mm x 50mm
(19.66" x 11.81"x 1.97")

Optics
Focus Factory pre-focused
Laser Unit Type Solid-State Diode

Equivalent to 15-20watt CO2 laser

Classification Class I

The safest laser device rating available.

Hardware
3D Cutting & Engraving, fully software controlled.
Camera for material alignment.
Wifi & USB Connectivity
Fume Extraction, built-in.

Internal Workspace Lighting

Accessories
Fume Filtration System
Air-Assist System
